Vornado Duo Circuit Board Replacement

Geschrieben von: Tyler Pettenger
  • Kommentare: 2
Vornado Duo Circuit Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

9 - 10 Minuten

Einleitung

In this replacement guide, step by step instructions will show how to replace the circuit board located inside of the Vornado Duo.

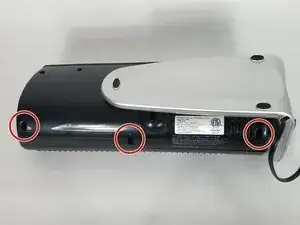

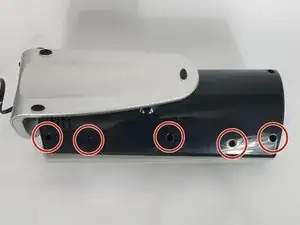

  1. dWC3eXoaeOnFYBOO
    dWC3eXoaeOnFYBOO
    dDwNU5baGWVOPdSX

    • Start off by using a Philips #2 screwdriver to remove all 8 10mm exterior screws on the rear of the device.

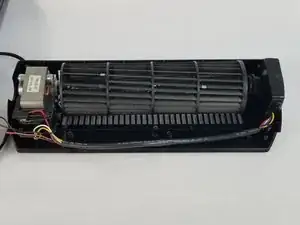

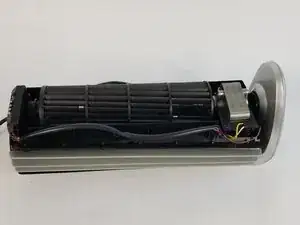

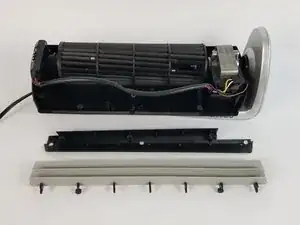

  2. vtKIQJLWH2REy3aS
    vtKIQJLWH2REy3aS
    yYkxrCoySJFwlsyR
    weSEFBUNlGtffc3r

    • Carefully take front panel off.

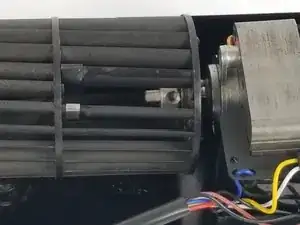

  3. IVBlNdxuRKDnUUsU
    IVBlNdxuRKDnUUsU
    hAM5HwWT3VhKMO2D

    • Loosen 5 mm screw at bottom of fan blade located inside the blades.

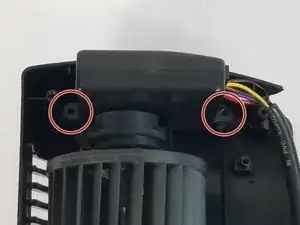

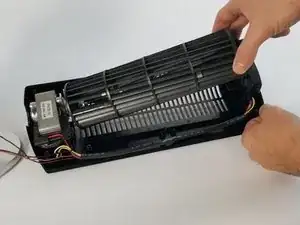

  4. C2tLAQIyWlN5bDBI
    C2tLAQIyWlN5bDBI
    AWPx2RvSfHwFMpVB

    • Remove fan blade after unscrewing top 2 screws located on each side of the covered board.

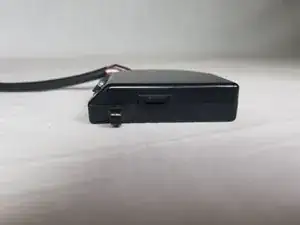

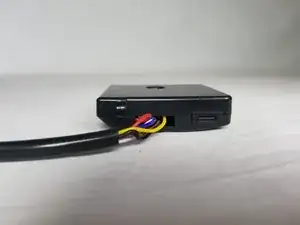

  5. Mvg1yyAXVsasAM6E
    Mvg1yyAXVsasAM6E
    EIWCLNAEx3lsOTHT
    Xv4lIWSlXhYC4SmG

    • Remove cover from board.

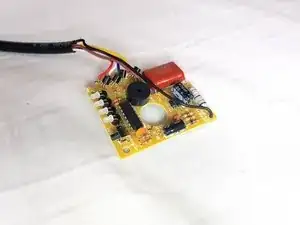

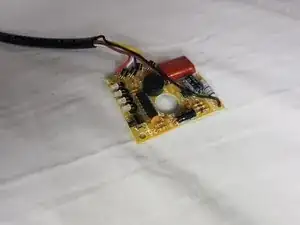

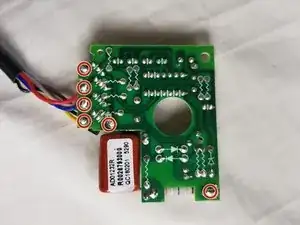

  6. neSJ3txdp2kNXxxs
    neSJ3txdp2kNXxxs
    lCpnMgwHNMmoyP2o

    • Unsolder the circled spots on the mother board and resolder each wire to corresponding spot.

    And if not get the circuit board. how can you connect the wires direct.

    Amoah -

    I can't get the circuit board anywhere .so please help with the combined of the wires.

    Amoah -

Abschluss

To reassemble your device, follow these instructions in reverse order.
