In this replacement guide, step-by-step instructions show how to approach replacing the fan blade of the Vornado Duo.

  1. GpGsVETRVLLtG45s
    GpGsVETRVLLtG45s
    TXvQAfwPuWGhkKHQ

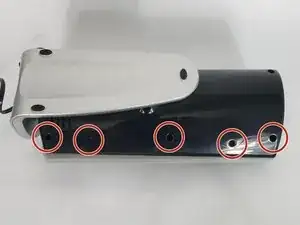

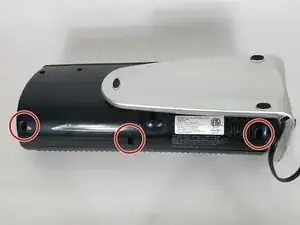

    • Start off by using a Philips #2 screwdriver to remove all eight 10mm exterior screws on the rear of the device.

  2. BmcsvFL5c5aHI1AB
    • Carefully take front panel off.

  3. 5PN3HaiPT1oveWAK

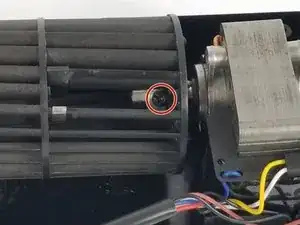

    • Loosen 5mm #2 screw at bottom of fan blade.

  4. TvB14U6EsCgFCPYj

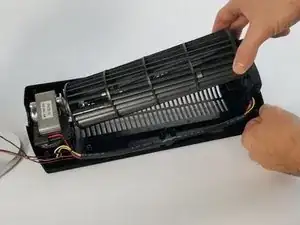

    • Remove fan blade.

Abschluss

To reassemble your device, follow these instructions in reverse order.
