Vornado Duo Fuse Replacement

Geschrieben von: Tyler Pettenger
  • Kommentare: 2
Vornado Duo Fuse Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

2 Minuten

Einleitung

In this replacement guide, step-by-step instructions show how to approach replacing the fuse in the power cord plug of the Vornado Duo.

  1. MhkY1kcHYdbWBSDm

    • Grasp plug and remove from the receptacle or other outlet device.

    • Do not unplug by pulling on cord.

  2. 3GNsO6pqA6p2OQSL

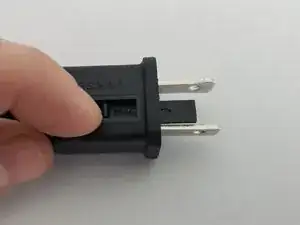

    • Open fuse cover by sliding access cover on top of attachment plug.

  3. rqkCtPe6Zhs6JVXU

    • Remove fuse carefully by gently prying out the ends of the fuse from the receptacle again using the driver with the 2mm flathead.

    • Risk of fire. Replace fuse only with 2.5 Amp, 125 Volt fuse.

  4. nkJvqjRoDoSAOdO6

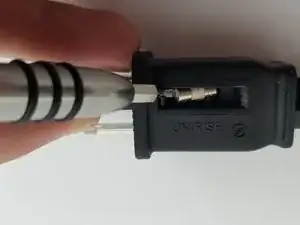

    • Install replacement fuse by first placing the end of the fuse into the fuse receptacle which is opposite of the blades of the plug, then carefully push in the other end. (Only push against the metal end of the fuse, not the glass center portion)

  5. Ad4LNQKZAX32MUXs

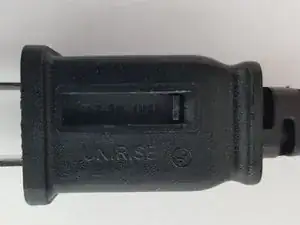

    • Close the fuse access cover by sliding the cover back into the plug until it is completely closed, latches and is flush with the face of the plug. (Risk of fire. Do not replace attachment plug. Contains a safety device that should not be removed.)

Tinte & Feder

Tyler Pettenger

Mitglied seit: 28/09/17

536 Reputation

2 Kommentare

It’s still not working for me - I’ve cleaned the whole fan, put it back together and changed the fuse. Any tips? Thank you.

Whitney Sturner -

Did you ever get an answer? I'm having the same problem

bysgamer617 -
