Vostro 1720 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

7 - 15 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Hard Drive.

  1. domAWMsI3LoxbmLK

    • Slide the battery lock latches into the unlocked position.

  2. aPQRoJFYlHkPw6Sx

    • Slide the battery toward the back of the computer to remove.

  3. VXQy5QWZZDIFXkEC

    • Remove the screw that secures the hard drive access panel to the base of the computer.

  4. NSHDBTjcgFtOnPmO

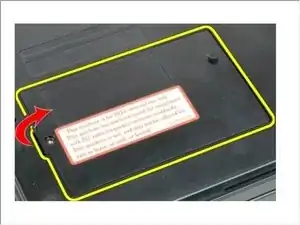

    • Insert a plastic scribe into the slot and lift up the access panel, then remove the panel from the computer.

  5. QJa3ZLveohvlFgOO

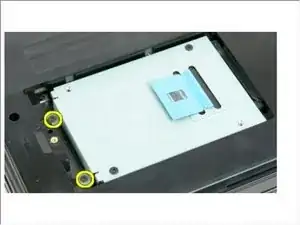

    • Remove the two screws that secure the hard drive in place.

  6. A1CF4nrNsW2kldmR

    • Slide the hard drive toward the right side of the computer.

  7. olERFaITWxFBXgas

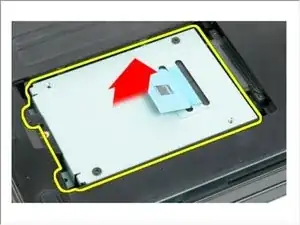

    • Lift the hard drive from the computer.
