Vostro 1720 Memory Module Replacement

Geschrieben von: Johnathan Hammond
  • Kommentare: 0
Vostro 1720 Memory Module Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

9 - 20 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Memory Modules.

  1. domAWMsI3LoxbmLK

    • Slide the battery lock latches into the unlocked position.

  2. aPQRoJFYlHkPw6Sx

    • Slide the battery toward the back of the computer to remove.

  3. KAvOCNBfjiadZIDC

    • Remove the eight screws from the access panel.

    • Lift the edge of the access panel that is closest to the center of the computer.

  5. FOUtNtW2GimNjeZs

    • Remove the access panel.

  6. 12MwnlqIDPPbAgqI

    • If applicable, remove the top memory module by using your fingertips to carefully spread apart the securing clips on each end of the top memory module connector until the memory module pops up.

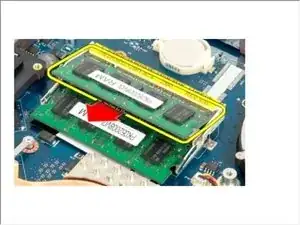

  7. aC6cYErFqHrgOEvd

    • Slide the memory module out of the socket.

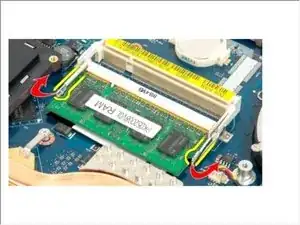

  8. 1IFZwyMxaXpTVcBB

    • If applicable, remove the bottom memory module by using your fingertips to carefully spread apart the securing clips on each end of the memory module connector until the memory module pops up.

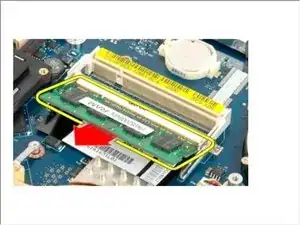

  9. PGjOAhPAdPqhhJAx

    • Slide the memory module out of the socket.
