Vtech InnoTab 3S Buttons Replacement

While holding the battery compartment locks down, slide the two battery doors outwards from the sides of the device.

Remove the batteries from the device.

Remove six 7 mm screws from the interior of the battery compartment using a Phillips #1 screwdriver.

Using a nylon spudger, remove the five caps that hide the screws.

Remove the five 5 mm Phillips #1 screws from the rear panel of the device.

Carefully remove the rear panel from the front panel of the device.

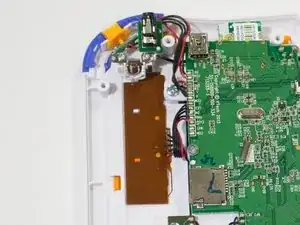

Using a Spudger, gently lift the brown squares located on the left and right sides of the tablet to gain access to the buttons.

Replace the malfunctioning buttons and lower the brown squares back into place to secure the buttons to the device.

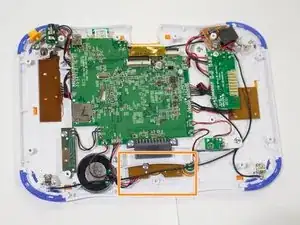

Remove the motherboard to access the lower buttons. To remove the motherboard please see our Motherboard Guide

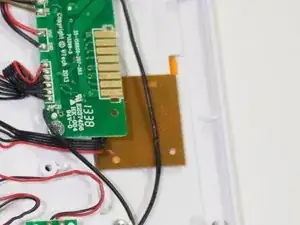

Now that the motherboard is removed, use a Spudger to gently lift the brown square at the bottom of the device.

Replace the malfunctioning buttons and lower the brown square back into place to secure the buttons to the device.
