Vtech InnoTab 3S Microphone Replacement

Geschrieben von: taweewatchulikavit
  • Kommentare: 0
Vtech InnoTab 3S Microphone Replacement

Schwierigkeitsgrad

Difficult

Schritte

7

Zeitaufwand

45 Minuten - 2 Stunden

Einleitung

Is the microphone not working properly on your childs tablet? This guide will walk you through replacing the microphone on the Vtech InnoTab 3s.

  1. AN4NflwPOsSD2qge
    AN4NflwPOsSD2qge
    utWMswdXJoMSBmRY
    uyJpauGYyK1qLH6e

    • While holding the battery compartment locks down, slide the two battery doors outwards from the sides of the device.

    • Remove the batteries from the device.

  2. FQ2GMogw1xnN563s
    FQ2GMogw1xnN563s
    RNXSFJ4syuoZNyJt

    • Remove six 7 mm screws from the interior of the battery compartment using a Phillips #1 screwdriver.

  3. aDIsGvdFQGA6eILY
    aDIsGvdFQGA6eILY
    bp5iJxHBppuBOL5W
    vHqdMPeaologKDOI

    • Using a nylon spudger, remove the five caps that hide the screws.

    • Potential for device damage: Be careful not to scrape the plastic from the device using the spudger.

    • When removing the caps, hold the spudger vertical to the board to make removal easier. Also try to push in with your spudger pointing towards the bottom of the device.

    • Remove the five 5 mm Phillips #1 screws from the rear panel of the device.

  4. hmkXcDRva6I6ngDt

    • Carefully remove the rear panel from the front panel of the device.

    • Once the rear panel is removed, you'll be able to see the motherboard and other components within the Vtech InnoTab 3s.

  5. mWKCwtwvXiTeIymI
    mWKCwtwvXiTeIymI
    fH1LUgGl1sgu4dEM

    • Remove the six screws that secure the motherboard to the front panel of the device using a Phillips #1 screwdriver.

    • Remove the other 5mm screws that secure the charger port and the buttons to the inside of the front panel.

    • Remove the six 3 mm screws securing the battery clip.

  6. UmHZvExiiaCaHjAX

    • Using the tweezers, remove one battery clip from each corner (four total) of the Vtech InnoTab 3s.

    • With the tweezers, unsecure the charging port, headphone port, and the light switch button from the front panel of the device.

    • Potential for device damage: Avoid forceful movements when removing the motherboard to prevent damage of device components.

  7. YUJjmsaEXOkcBmZI
    YUJjmsaEXOkcBmZI
    BrmNZh1HWtxYysJd

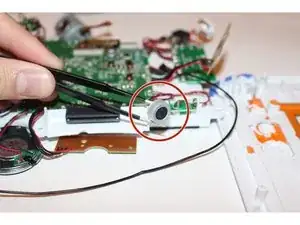

    • The microphone is on the bottom right of the device, and shaped like a small white circle. There are two prongs securing the microphone to the device.

    • Solder the prongs to unsecure the microphone from the device.

    • Avoid forceful movements when soldering to prevent damage to device components and personal injury.

    • Using the tweezers carefully remove the microphone from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
