Vtech Kidibeats Drum Set Green Cymbal Replacement

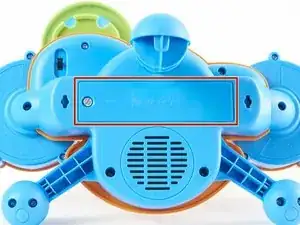

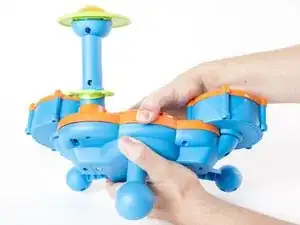

Locate the battery panel that is centered between the three leg supports at the bottom of the drum set.

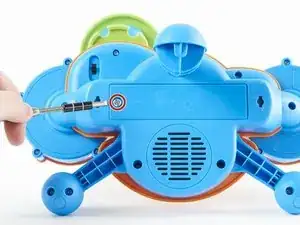

To remove the battery panel, loosen the 10 mm panel screw using a flathead 4.0 screwdriver.

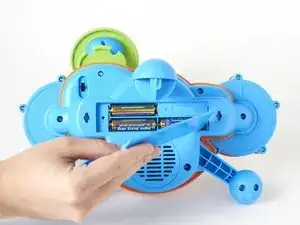

Using your fingers, pry open and remove the back battery panel.

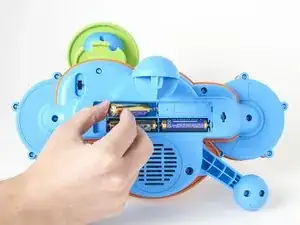

Use your fingers to remove each battery from its housing.

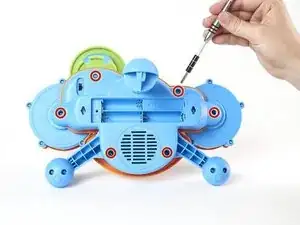

Using a Phillips #2 screwdriver, loosen and remove the six 14 mm screws.

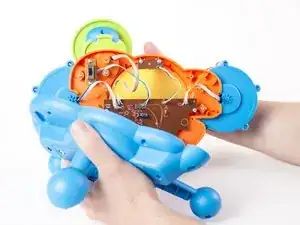

With your hands, separate the bottom panel from the drum set.

Use Phillips #2 screwdriver to loosen and remove the single 16 mm screw.

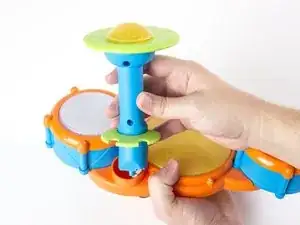

Using your hands, remove the blue cymbal stand from the orange base.

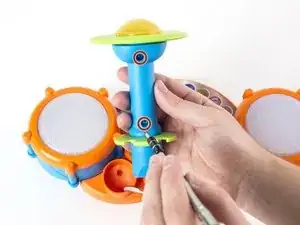

Loosen and remove the two 14 mm screws using a Phillips #2 screwdriver.

Using your hands, separate the two halves of the blue cymbal stand.

Using your hands, separate the green cymbal from the blue cymbal base.

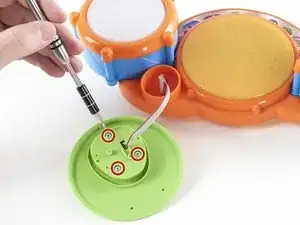

Using a Phillips #00 screwdriver, loosen and remove the three 12 mm screws located on the bottom of the green cymbal.

Using your hands, separate the green cymbal from the green cymbal base.

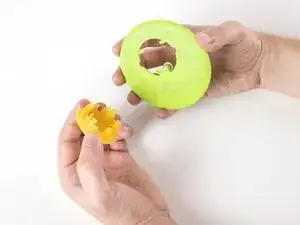

Using your hands, pull apart the green cymbal from the yellow light casing.
