Vtech Touch and Swipe Baby Phone Power Switch Replacement

Geschrieben von: tellocordova
  • Kommentare: 2
Vtech Touch and Swipe Baby Phone Power Switch Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

  1. SjZMlxCyixboNoVD
    SjZMlxCyixboNoVD
    ucywvZAXIkJAxPLw

    • Using a Phillips #1 screwdriver, remove the 4.8mm screw on the battery cover by twisting the screwdriver counter-clockwise.

  2. wo2xkvAdDJLfSyDW
    wo2xkvAdDJLfSyDW
    CnhSpTYYoFEhKThA
    GWOSB42VDBClBBMX

    • Remove the two AAA batteries by pulling on one end of the battery and lifting it straight out.

  3. ekBeMOhR6Xk2F3HJ
    ekBeMOhR6Xk2F3HJ
    iL4ccf1eudbvOlNr
    SoAYYZfqt3k15tiG

    • When reassembling, align the notch on the battery panel with the slot on the phone.

  4. iTuRm2OSmJHJlLmr
    iTuRm2OSmJHJlLmr
    CkkRoTgUaIjP5BYL

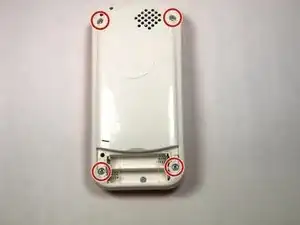

    • Remove 4 13.8mm screws holding the device back using a Phillips #1 screw driver.

  5. veM1S2MQXMflFJC6
    veM1S2MQXMflFJC6
    p5PBg5MAj4uBfeCh
    WMw3QkDMpt46gCbU

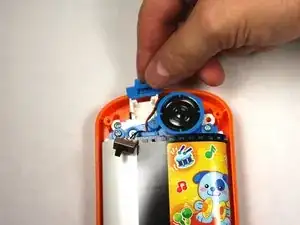

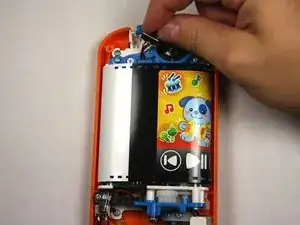

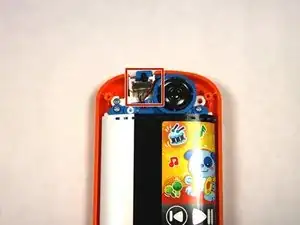

    • Lift directly up to remove the switch and lay the wire down to the side.

    • Once the switch has been taken out you can remove the switch's casing.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

tellocordova

Mitglied seit: 04/09/15

342 Reputation

2 Kommentare

Good work.

I have done it the same way,

the wire at the switch was bad soldered,

but it was easy to repair it and i soldered it new.

Nice.

Schwarzstein -

My baby’s phone keeps turning itself off. The switch is in the ON position but it keeps turning OFF and singing the off song. I have opened the phone and even held the switch to ON but it still keeps turning OFF even without the switch moving. Any suggestions?

shakinsher -
