Vulcan Venture II VNB14002IE I/O Board Replacement

Geschrieben von: Parish Brandt
  • Kommentare: 0
Vulcan Venture II VNB14002IE I/O Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 Minuten

Einleitung

  1. LBVNK5Q2ihlQE6yu

    • Use a J00 screwdriver to unscrew the 10 back-plate screws.

  2. BerhijVuFL2BwUOy

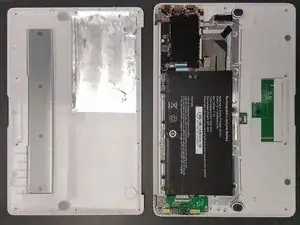

    • Using light pressure, slowly wiggle off the back panel.

  3. ewac5UH1RMVC6UMb

    • Locate the IO board on the back panel.

  4. YWOIbSAUncFFoXwG
    YWOIbSAUncFFoXwG
    vlTwxufKX5NbjkqP

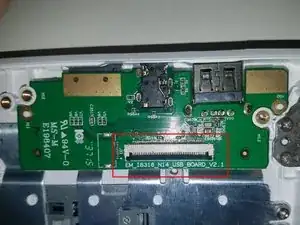

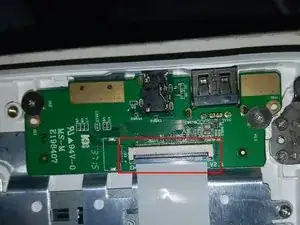

    • Locate the ribbon connector on the IO board, and lift the black bar closest the the ribbon.

    • Pull the ribbon cable away from the connector, releasing it.

  5. cKiDQmyROj6XWIuW
    cKiDQmyROj6XWIuW
    DqDGdj4To3cR1BPg

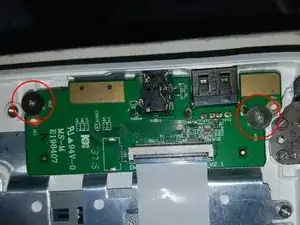

    • Locate the screws on the IO panel, and use the J00+ bit to unscrew them.

  6. oO6yVgoF6sNACri6

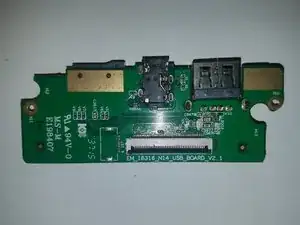

    • The IO Board is now safe to remove from the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
