Vulcan Venture II VNB14002IE Motherboard Replacement

Geschrieben von: Parish Brandt
  • Kommentare: 0
Vulcan Venture II VNB14002IE Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

25 - 45 Minuten

Einleitung

  1. LBVNK5Q2ihlQE6yu

    • Use a J00 screwdriver to unscrew the 10 back-plate screws.

  2. BerhijVuFL2BwUOy

    • Using light pressure, slowly wiggle off the back panel.

  3. YqHdAaUFwjllJ5Of

    • For the ribbon pin cables, carefully lift up the black bar attached to the housing. Slowly slide the cable out once released.

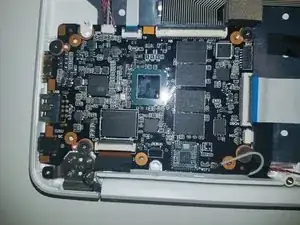

  4. KlMSCnGPbr6DC1nc

    • Use the J00 bit to remove the screw located in each of corners of the board.

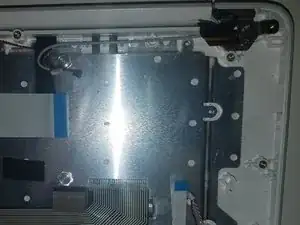

  5. PEuFj5lQCUeMKPbG

    • Once everything is removed properly, you should be able to lift the board out of it's housing, without any snags.

Abschluss

To reassemble your device, follow these instructions in reverse order.
