Vulcan Venture II VNB14002IE Speaker Replacement

Geschrieben von: Parish Brandt
  • Kommentare: 0
Vulcan Venture II VNB14002IE Speaker Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

4 Minuten

Einleitung

  1. LBVNK5Q2ihlQE6yu

    • Use a J00 screwdriver to unscrew the 10 back-plate screws.

  2. BerhijVuFL2BwUOy

    • Using light pressure, slowly wiggle off the back panel.

  3. OdSVcVAVKnmiK14a

    • Locate the speaker modules on the back of the laptop.

    • Gently pry the speakers out of the plastic casing using your finger or the blue plastic pry tool.

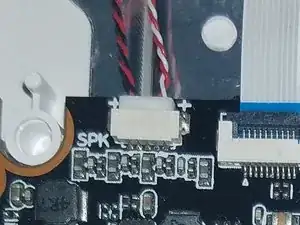

  4. a4jBbagMWMX5gHjr

    • Gently pull out the speaker wire connector from the motherboard.

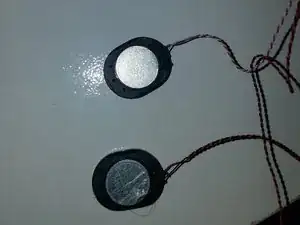

  5. 2WpUl5yboxXJD4mS

    • Unwrap the wires from their holders and remove the speaker modules.

    • When re-inserting the speakers, make sure the wires are correctly wrapped around the plastic holders, and that the speaker wire goes underneath the touch pad connector wire, as it was before.

Abschluss

To reassemble your device, follow these instructions in reverse order.
