WWB222324 Watch Winder Motor Replacement

Geschrieben von: easy_source
  • Kommentare: 1
WWB222324 Watch Winder Motor Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

Instructions to replace winder motor and gear assembly.

  1. Z2UvOuVKjTYVopSE

    • Turn the winder off

    • Unplug the power cord

  2. eaBsJk3jERSeXrDT
    eaBsJk3jERSeXrDT
    c4XRENHaRODMAFrT

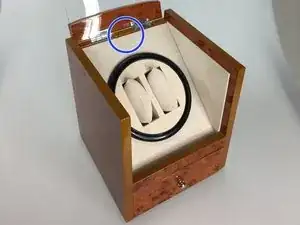

    • Pull angled turntable platform toward you by upper seam

  3. fAif4YQnptERZGoO

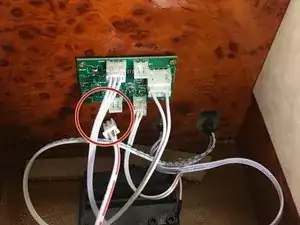

    • Unplug motor connection cable from circuit board

  4. VcJuyGIH2YHNeZTa
    VcJuyGIH2YHNeZTa
    Ux4MiZkC2D3NLRNV

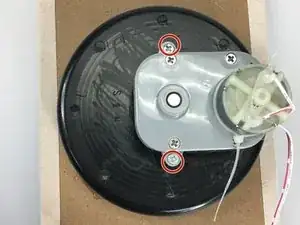

    • Unscrew two retaining screws from gearbox

    • Remove round watch insert

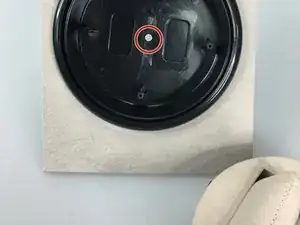

    • Unscrew single retaining screw from cup

  5. AKpZmOANr21ly2bY

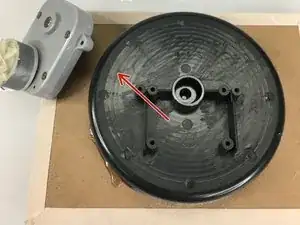

    • Pull gearbox and motor out from back of the turntable platform

    • Follow steps in reverse order to replace motor

Abschluss

To reassemble your device, follow these instructions in reverse order.
