Einleitung
Follow this guide to remove and replace either of the two shockmounts for the Wacker Compactor Plate VP1550AW 2014.
The shockmounts are easy to access and replace.
Werkzeuge
Ersatzteile
-
-

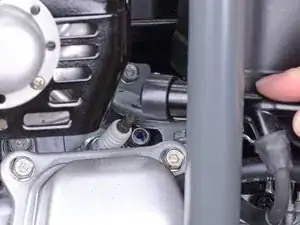

Grab the plastic housing at the end of the spark plug wire.
-
Pull firmly to disconnect the wire from the spark plug.
-
-
-

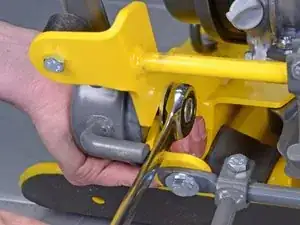

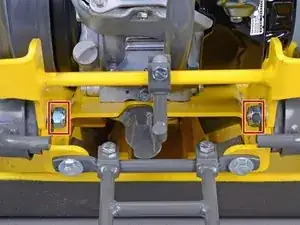

Use a 3/4" wrench to remove the two nuts securing the handle.
-

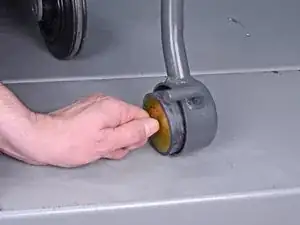

Use your palm to push against the shockmount to prevent it from slipping.
-
Remove the nuts and washers and retain them for reassembly.
-
-
-

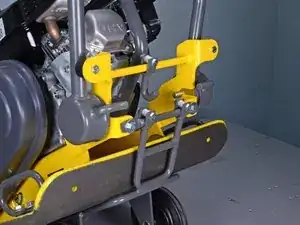

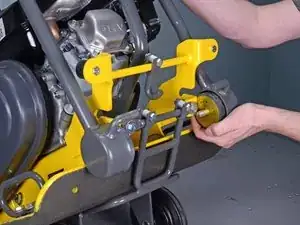

Tilt the guide handle forward to pivot the shockmount bolts out of the base grooves.
-

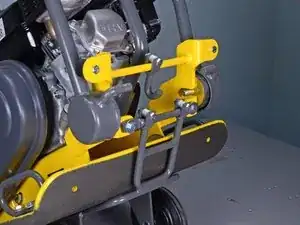

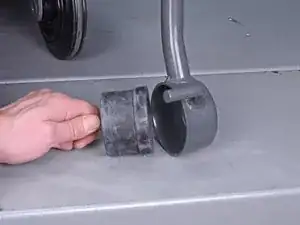

Slide the guide handle down enough to access the shockmounts.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
