Wacker Compactor Plate VP1550AW 2014 V-Belt Guard Removal

Geschrieben von: Arthur Shi
  • Kommentare: 0
Wacker Compactor Plate VP1550AW 2014 V-Belt Guard Removal

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

Keine Schätzung

Einleitung

Follow this guide to remove the belt guard for the Wacker Compactor Plate VP1550AW 2014.

  1. SubBDGtjO1Zoo1Ds
    SubBDGtjO1Zoo1Ds
    brYLP5JOTWkDYmyo

    • Before you begin, be sure that the engine is powered off and is cool to the touch.

    • Grab the plastic housing at the end of the spark plug wire.

    • Pull firmly to disconnect the wire from the spark plug.

  2. mtJK6lvkSjBMx6FD

    • Use a 1/2" socket and wrench to loosen the two bolts securing the belt guard.

    • The bolts are captive and should not be removed.

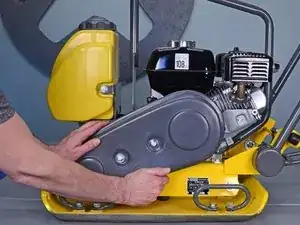

  3. 1tEtrCbpt6FXVDLN
    1tEtrCbpt6FXVDLN
    6xlBsUdcgYFmQgQF

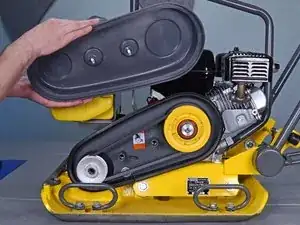

    • Remove the belt guard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
