Wacker Compactor Plate VP1550AW 2014 V-Belt Replacement

Geschrieben von: Arthur Shi
  • Kommentare: 0
Wacker Compactor Plate VP1550AW 2014 V-Belt Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

30 Minuten

Einleitung

Follow this guide to remove the drive belt for the Wacker Compactor Plate VP1550AW 2014.

  1. SubBDGtjO1Zoo1Ds
    SubBDGtjO1Zoo1Ds
    brYLP5JOTWkDYmyo

    • Before you begin, be sure that the engine is powered off and is cool to the touch.

    • Grab the plastic housing at the end of the spark plug wire.

    • Pull firmly to disconnect the wire from the spark plug.

  2. mtJK6lvkSjBMx6FD

    • Use a 1/2" socket and wrench to loosen the two bolts securing the belt guard.

    • The bolts are captive and should not be removed.

  3. 1tEtrCbpt6FXVDLN
    1tEtrCbpt6FXVDLN
    6xlBsUdcgYFmQgQF

    • Remove the belt guard.

  4. vtVGUtjFrwopHFIR
    vtVGUtjFrwopHFIR
    VSfWUhnZ1P6ZY3dc
    efqC2WFwZScljEH5

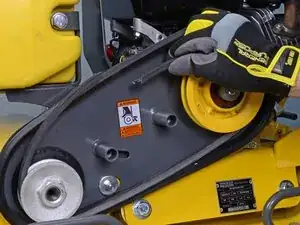

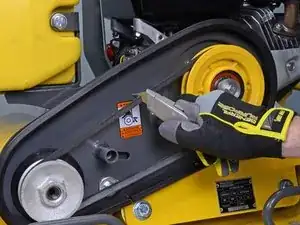

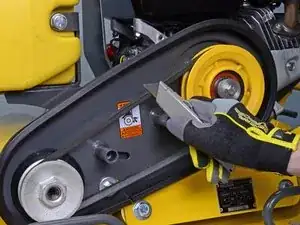

    • Use scissors or a blade to cut the drive belt.

    • Remove the drive belt.

  5. HIcmrHUYndvDuWsv

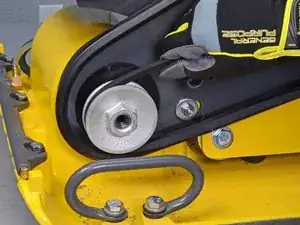

    • Loop the replacement belt onto the small pulley.

  6. uDmZvEFNOQvCxuPR
    uDmZvEFNOQvCxuPR
    ioF61ZBVEnaTLidv
    RxtxPovN5gQqvnUt

    • Replacing the belt poses a substantial pinching hazard. Wear safety gloves and be mindful where you position your fingers.

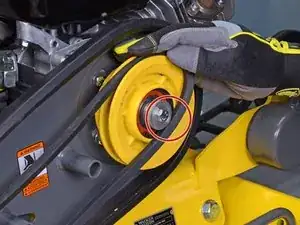

    • Guide the belt over the top of the clutch pulley.

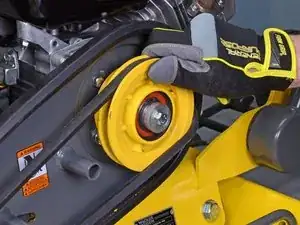

    • Loop the belt underneath the pulley axle.

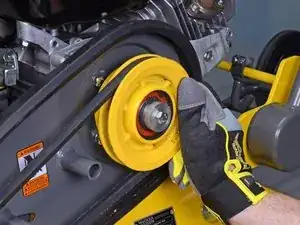

    • Rotate the pulley slowly and guide the built into the groove.

    • Getting the replacement belt back onto the drive pulley requires considerable strength.

Abschluss

To reassemble your device, follow these instructions in reverse order.
