Wacker Concrete Vibrator M1500120 REV 100 2016 Power Cable Replacement

Geschrieben von: Carsten Frauenheim
  • Kommentare: 0
Wacker Concrete Vibrator M1500120 REV 100 2016 Power Cable Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

15 - 30 Minuten

Einleitung

Use this guide to remove or replace the power cable on a Wacker M1500-120 REV 100 (2016) Concrete Vibrator.

  1. 1PAyR1Tw5BoFF6MR
    1PAyR1Tw5BoFF6MR
    w1HvIV2wsy6GNvQX
    1wKMyiprThZLyRBG

    • Before starting, ensure the device is unplugged from power.

    • Pull up on the quick-disconnect handle to release the lock on the flex shaft.

    • Remove the flex shaft.

  2. qSpywVUUNAUaHqAy

    • Use a T20 Torx screwdriver to remove the nineteen screws securing the two halves of the device housing.

  3. gnp4AAQ6M6xCZ6fT
    gnp4AAQ6M6xCZ6fT
    EWESWUfPawLLXOsf

    • Lay the device down onto its right side, screw holes facing up.

    • Remove the rear dust filter.

  4. nFGokcSQHdLYFJdY
    nFGokcSQHdLYFJdY
    KpY4YPBJVIDB2WXr
    qcReFcYSG2UTLZGU

    • Lift to remove the left half of the device housing.

    • If the housings feel stuck together, use a flathead screwdriver to create a gap between the halves.

  5. 1PqDTouygO5Heh31
    1PqDTouygO5Heh31
    yBBZaa4My2V5KO6N

    • Lift the switch out of its recess in the case housing.

  6. VkFibewTllEnTI5Z
    VkFibewTllEnTI5Z
    eALdnoMpS4fRimIB
    sgX6jh5EMAdSXV53

    • Use a pair of needle nose pliers to disconnect the black and white power wires from their terminals on the switch.

  7. ADT15FLhiXxXJrBR

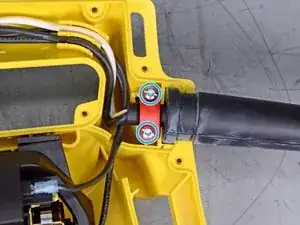

    • Use a T20 Torx screwdriver to remove the two screws securing the power cable clamp to the housing.

  8. IbVYtDvgYZhVoJ5K
    IbVYtDvgYZhVoJ5K
    4FtDFIULeMpTtRUD

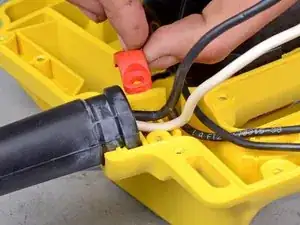

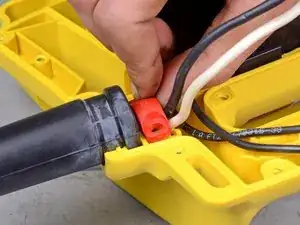

    • Remove the power cable clamp.

  9. LT5gHHEkllwWNKXY
    LT5gHHEkllwWNKXY
    m11qLsqmGg1OwBs2

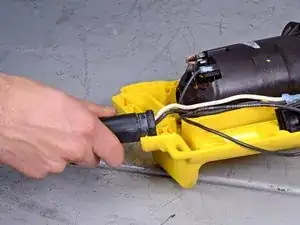

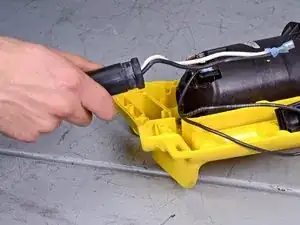

    • Lift the power cable assembly up and away from the device.

  10. KssqBec3m3on452S
    KssqBec3m3on452S
    KdXdcD2KvYqKZakT
    tFJbeUdljKXAeooL

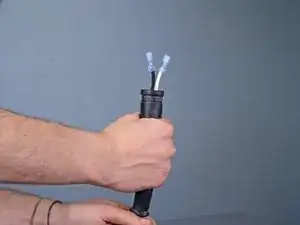

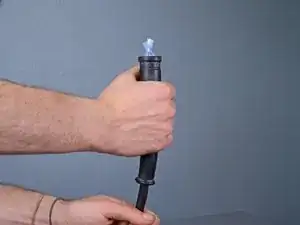

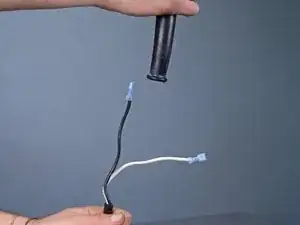

    • Slide the reinforcing sleeve up and off of the power cable.

  11. 2YGrtRpCd2rHRFMo

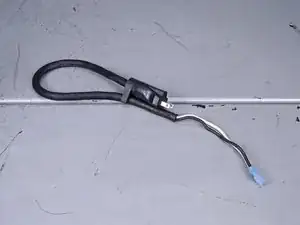

    • Only the power cable remains.

Abschluss

To reassemble your device, follow these instructions in reverse order.
