Wacker Pump PG1 2014 Seal Kit Replacement

Geschrieben von: Carsten Frauenheim
  • Kommentare: 0
Wacker Pump PG1 2014 Seal Kit Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

10 - 30 Minuten

Einleitung

Use this guide to replace the mechanical seal kit behind the impeller on a Wacker PG1 (2014) Pump.

  1. 4XNBHUoBOEUKnTHe
    4XNBHUoBOEUKnTHe
    fFirnes2hIApx6RL

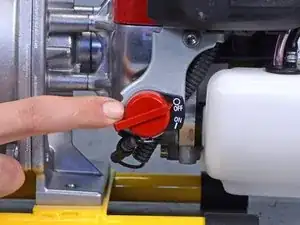

    • Before beginning repairs, disconnect and remove all hoses.

    • Flip the motor ignition switch into the OFF position.

  2. nsccBgKEm5OItKQB

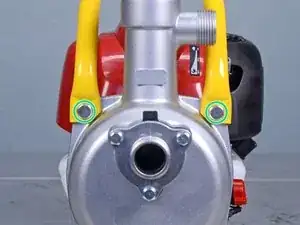

    • Use a 13 mm socket to remove the two bolts securing the handle.

  3. Kc5PVPsR2E6HAM1A
    Kc5PVPsR2E6HAM1A
    FjoO3XIx2eHIBc2U

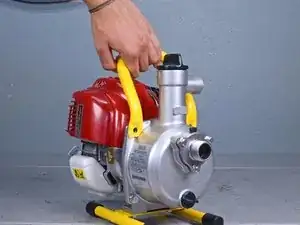

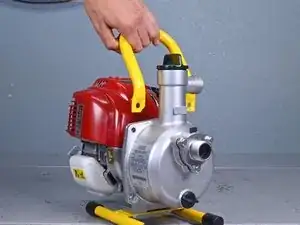

    • Remove the handle.

  4. XiFThMtwfiSUnIil

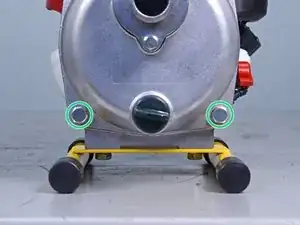

    • Use a 13 mm socket to remove the two bolts securing the float chamber housing.

  5. 1OmpjeiKGZUJgeZW
    1OmpjeiKGZUJgeZW
    22VMyR5K2dUn1iR2
    1ZN1mtUKDGTd4iib

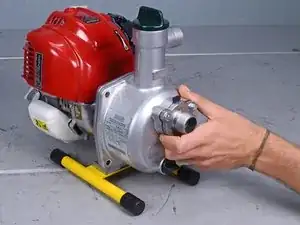

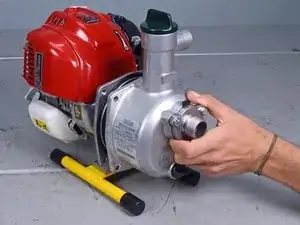

    • Remove the float chamber housing.

  6. O3KsfFR3TTbau6nn

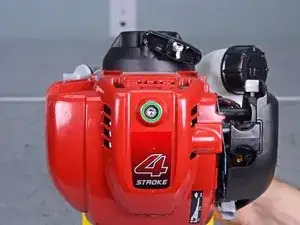

    • Use a 4 mm hex key to remove the bolt securing the engine cover.

  7. HRxNGwFTWxWARwfV
    HRxNGwFTWxWARwfV
    6bFN2VC1IQiaHNB5

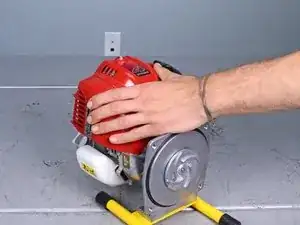

    • Lift up to remove the engine cover.

  8. MKledZubWiJXvGs3
    MKledZubWiJXvGs3
    jrqTwgysMeSrDlch

    • The impeller is threaded onto the motor's output shaft and will need to be loosened. In order to stop the shaft from rotating, the motor fan assembly will need to be blocked.

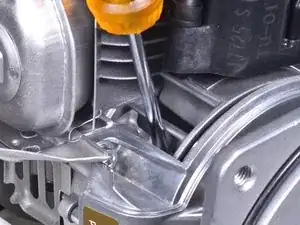

    • Insert a flathead screwdriver between two fan blades on the motor fan assembly.

  9. lMBPahNI6RBxm5qE

    • Tap the impeller on one of its blades with a rubber mallet and a punch to break it loose from the threads on the output shaft.

  10. aQjONGxhv4JeJmbh
    aQjONGxhv4JeJmbh
    rFLZy2QMGPAnGPSZ
    ogBh5kNARhuwsqxJ

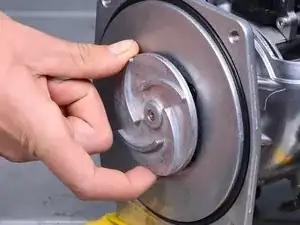

    • Use your fingers to unthread and remove the impeller.

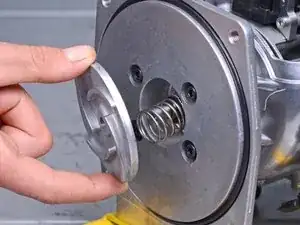

    • With the impeller removed, the seal kit spring will become loose and may fall out.

  11. MYww6XmmFQyd6qvA
    MYww6XmmFQyd6qvA
    jQHxEoAmIRCwTJBA

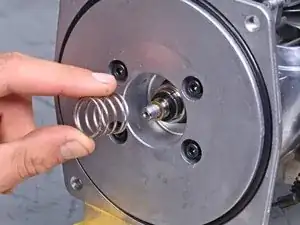

    • Remove the seal kit spring.

  12. ptZHpRNkbVNnNeMO
    ptZHpRNkbVNnNeMO
    2PQQG52PtqbWeFAc
    gaFDffDNmCxEjwp5

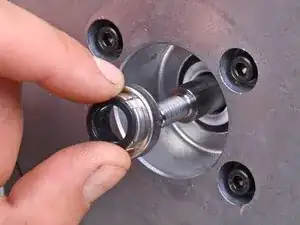

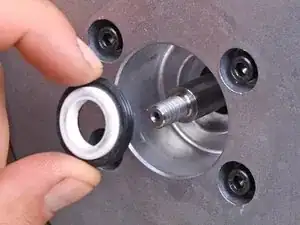

    • Remove the seal kit washer.

    • Remove the seal kit flange.

    • Remove the seal kit bushing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
