Wacker Pump PST2 400 2008 Impeller Replacement

Geschrieben von: Carsten Frauenheim
  • Kommentare: 0
Wacker Pump PST2 400 2008 Impeller Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 - 30 Minuten

Einleitung

Use this guide to remove or replace the impeller on a Wacker PST2 400 (2008) Submersible Pump.

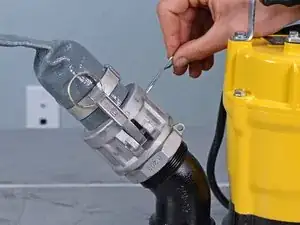

  1. SCYs3NZTGSLNQnqb
    SCYs3NZTGSLNQnqb
    CbuRB6TKVu1bBPdH
    EwIx3XwBT1gIKdxG

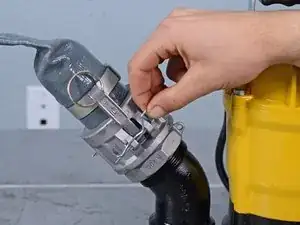

    • Before starting, ensure the device is unplugged from power.

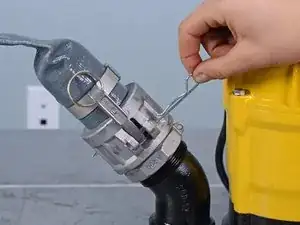

    • Pull to remove the two cotter pins securing the hose's locking arms, one on either side.

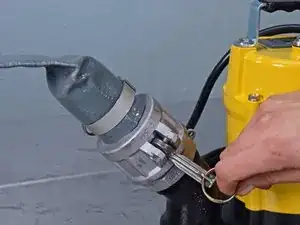

  2. WNtKhuOhbdwjJfn6
    WNtKhuOhbdwjJfn6
    sv4Q1YiPDUHQYAVp
    hdYMCsE3jGqscZVY

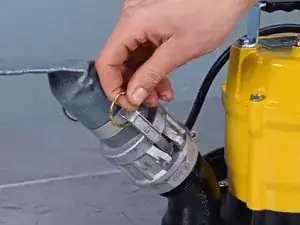

    • Flip the two locking arms down to unlock the hose collar.

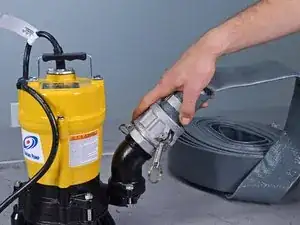

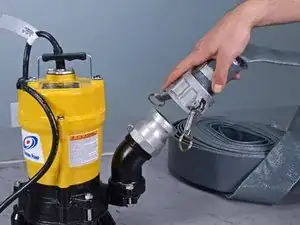

  3. tSQVfqrFLjBXrXfM
    tSQVfqrFLjBXrXfM
    fVSN5afYTxWLty1W

    • Lift the hose away from the collar on the pump body to remove it.

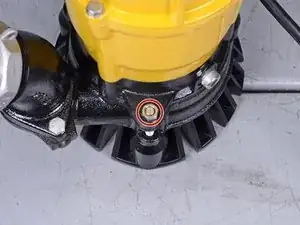

  4. Br4CDiQb2rnbTe2X
    Br4CDiQb2rnbTe2X
    Sc4uPcEPs1ymj4dp

    • Use a 13 mm socket to remove the three nuts securing the strainer assembly to the main body.

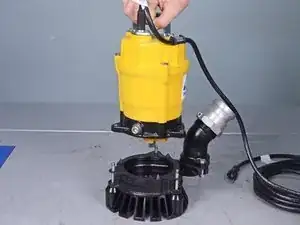

  5. V51HOHdxp5Y2lPkl
    V51HOHdxp5Y2lPkl
    ueeGXiaTvINUU1g1

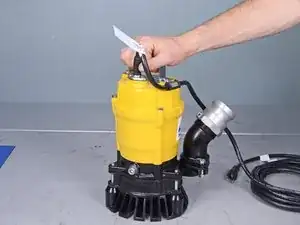

    • Lift the main body up and off of the strainer assembly.

    • If the gasket between the body and the strainer comes off with the body, remove it and leave it with the strainer assembly.

    • If the gasket is cracked or excessively dirty, replace it.

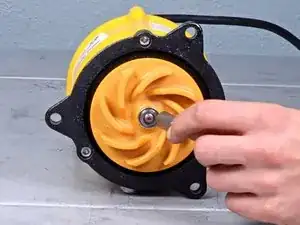

  6. AG5af1Nk1xJwIHmZ
    AG5af1Nk1xJwIHmZ
    fbIXJ3FFexJFJxQI
    RogsC4VmCrFrCbgT

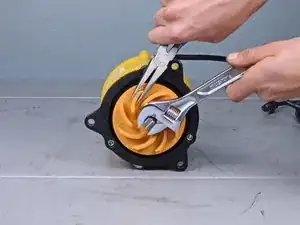

    • Grip one of the impeller blades with a pair of needle nose pliers.

    • With the impeller held in place, use an adjustable wrench to loosen the stirrer nut securing the impeller to the main body.

    • Remove the stirrer nut.

  7. aNqsZ5BW2dRMcv6Y
    aNqsZ5BW2dRMcv6Y
    IsgnwDXtU5rP2u3G

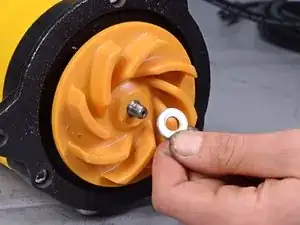

    • Remove the lock washer from the face of the impeller.

    • Remove the flat washer.

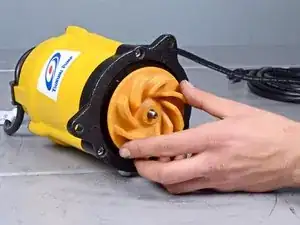

  8. noPOJTDFxkZpgnHl
    noPOJTDFxkZpgnHl
    bevagXKRSvCybMgF

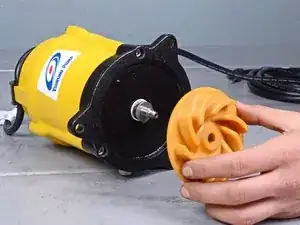

    • Remove the impeller.

    • If the dust seal behind the impeller is cracked or shows excessive wear, replace it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
