Einleitung
This guide shows how to remove and replace the mechanical seal for the Wacker Pump PT3A 2012.
Note: There are several versions of this device, and each uses a different mechanical seal design that’s incompatible with the others. Contact Wacker Neuson with the device serial number, and they will confirm which mechanical seal you need for the device.
-
-
Grab the plastic housing at the end of the spark plug wire.
-
Pull firmly to disconnect the wire from the spark plug.
-
-
-
Use the included wrench to loosen the four black knobs securing the pump housing cover.
-
If the wrench is missing, slide a screwdriver shank through the knob and twist to loosen the knobs.
-
-
-
Slide a large screwdriver through the slots in the starter cap and brace the screwdriver with a wooden block to prevent the driveline from turning clockwise.
-
-
-

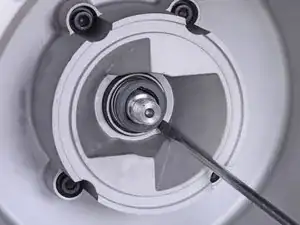

Use a flathead screwdriver to pry and loosen the mechanical seal from its recess.
-

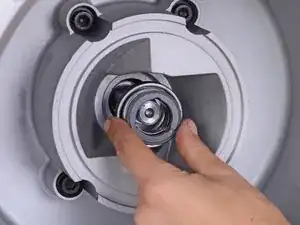

Remove the mechanical seal.
-
To reassemble your device, follow these instructions in reverse order.
