Wacker Pump PT3A 2012 Shock Mount Replacement

Geschrieben von: Arthur Shi
  • Kommentare: 0
Wacker Pump PT3A 2012 Shock Mount Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

10 - 20 Minuten

Einleitung

This guide shows how to remove and replace any of the four motor and pump shock mounts for the Wacker Pump PT3A 2012.

Note: There are several versions of this device, and each uses a different shock mount design that’s incompatible with the others. Contact Wacker Neuson with the device serial number, and they will confirm which mount you should order for the device.

  1. ioWeYCppLNNiKIMV
    ioWeYCppLNNiKIMV
    mnuENuLrJguFRrlY

    • Before you begin, make sure the device is switched off and the engine is cool to the touch.

    • Grab the plastic housing at the end of the spark plug wire.

    • Pull firmly to disconnect the wire from the spark plug.

  2. EU1TENuBHQnKTYTO
    EU1TENuBHQnKTYTO
    CDJVLI4hI61ffIpb
    Ie41aKYCeIhh6lE1

    • If you are only replacing one or two shock mounts, you may not need to rotate the device.

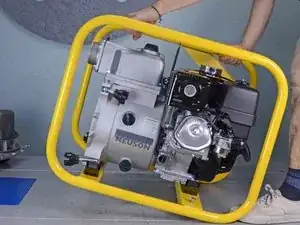

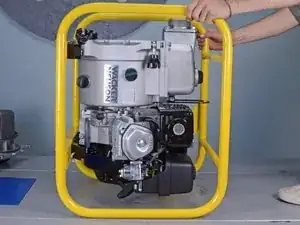

    • Carefully rotate the device so that the pump sits on top of the engine.

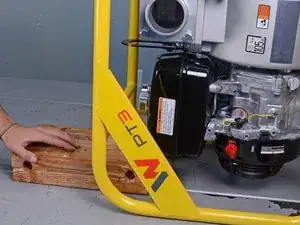

    • Place a block of wood underneath the engine so that the engine weight rests on the wood and not the shock mounts.

  3. TeRlWKUMiXBu1PVR

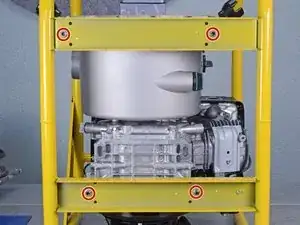

    • Do not remove all four mount bolts at once, or the assembly will separate from the frame. Replace up to two shock mounts at a time.

    • Use a 13 mm socket and wrench to remove the nut(s) securing the shock mount(s) that you are replacing.

  4. Ei2M2FNsRD3B4Wpx
    Ei2M2FNsRD3B4Wpx
    4HWHVHfruY5KtJyI

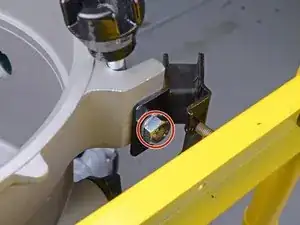

    • Use a 19 mm socket and wrench to remove the bolt securing the shock mount to the assembly.

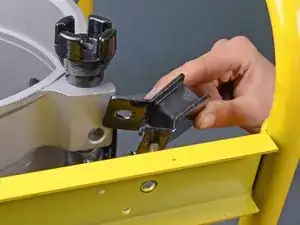

    • Remove the shock mount.

    • Repeat to replace the remaining shock mounts.

Abschluss

To reassemble your device, follow these instructions in reverse order.
