Frequent use can damage or jam the buttons on the Cintiq 24HD over time. You can not properly adjust the display of the Cintiq 24HD without the buttons . This guide will walk you through replacing the display control buttons on the Cintiq 24HD.
Werkzeuge
-
-

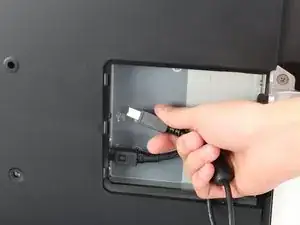

Unplug any cables from the USB, power, display or DVI-D ports by gripping the cord by the connector and pulling straight out of the port.
-
-
-

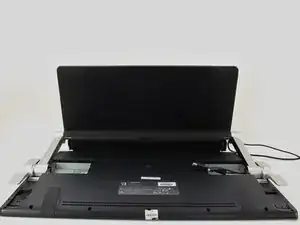

Place the device screen down on a flat surface.
-

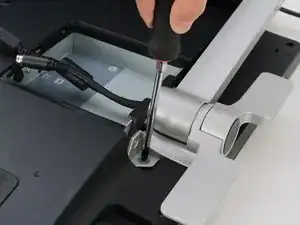

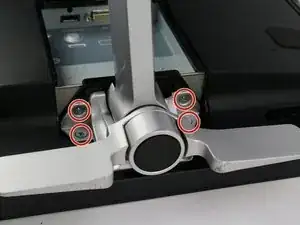

Remove eight 10mm Phillips #2 screws (four on each leg of the stand) by turning the screwdriver counterclockwise.
-
-
-

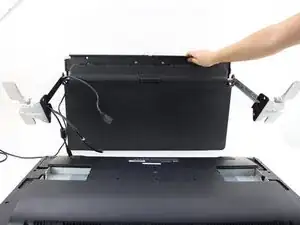

Lift the stand up and away from the rest of the device so the legs separate from the mounting plate.
-
-
-

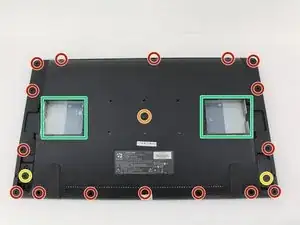

Remove eighteen 10.2mm Phillips #1 screws from the perimeter of the back panel by turning the screwdriver counterclockwise.
-
Remove one 11.9mm Phillips #1 screw from the center of the back panel.
-

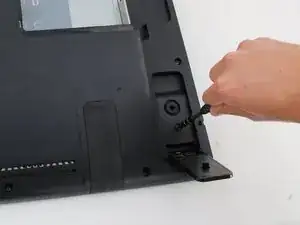

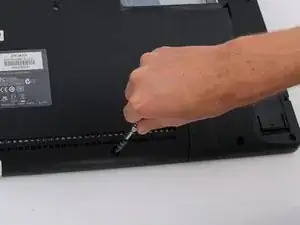

Remove two 10.2mm Phillips #1 screws from underneath hinged panels in the bottom right and left corners.
-
-
-

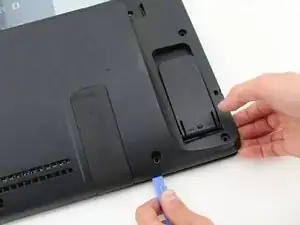

Lift the back panel up by a corner and insert a plastic opening tool in the gap.
-
Slide the tool along the gap around the perimeter of the device while lifting to unlatch the back panel.
-

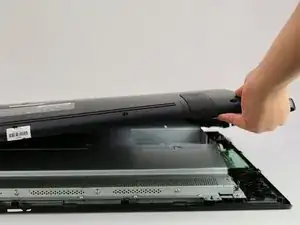

Remove the panel by lifting it up and off of the device.
-
-
-

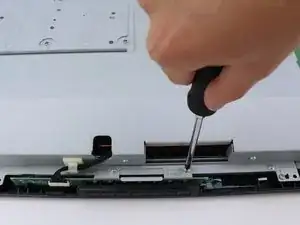

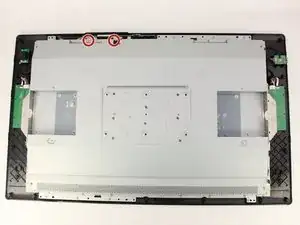

Remove the two 8mm screws from the metal button plate using a Phillips #2 screwdriver and by turning clockwise.
-

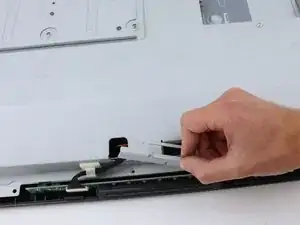

Remove metal holding plate by lifting up and off of the button board.
-
-
-

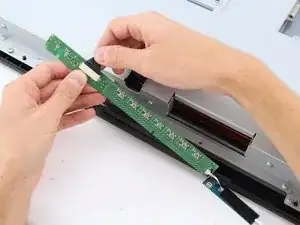

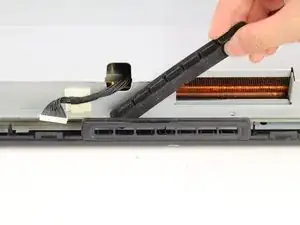

Remove the button board by pinching the wiring close to the connector and gently pulling straight out from the port.
-
-
-
Remove the button cover by pushing the buttons out of their holes and pulling the cover up.
-
To reassemble your device, follow these instructions in reverse order.
