Wahl Chrome Pro Motor Replacement

Geschrieben von: Ashley Dale
  • Kommentare: 0
Wahl Chrome Pro Motor Replacement

Schwierigkeitsgrad

Easy

Schritte

12

Zeitaufwand

10 Minuten

Einleitung

The motor drives the clipper blades. Motors can wear out after extended use. Replacing a worn-out motor can extend the longevity of this device.

  1. 2rJfvOUZEPwmsGHZ

    • Remove the two 5.0 mm JIS #1 screws to loosen the cutting blades.

    • Make sure your device is not connected to power before you begin.

  2. vKDIQjq6CGZcrYfU

    • Lift the bottom blade straight up from the device body to remove it.

  3. XkyKiFEauV2c4eIA

    • Remove the three 9.0 mm JIS #1 screws attaching the base of the blade assembly to the body.

  4. NT1q2FRODvsgglId

    • Lift the base of blade assembly straight up off of the body.

  5. iwBEsQHVJx3cxRfO

    • Remove the two 12.0 mm JIS #1 screws on the back of the device body.

  6. ByNiQPCN2ZgOT41m

    • Remove the 13.0 mm Phillips #2 screw on the side of the device body.

    • This screw is located on the opposite side of the body from the switch.

  7. jktdPTgKimVebleP

    • Remove the spring on the side of the body using tweezers.

  8. 4HCRrGeyC1J1eklh

    • Pry the body case off of the device using a spudger.

  9. wH5fC3aRYGsOmD2g

    • Lift power cord tab (black wire) from slot on motor base.

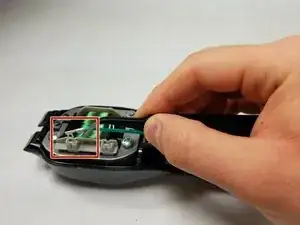

  10. RXWMJDFwqMureu5N

    • Lift switch tab (teal wire) from slot on motor base.

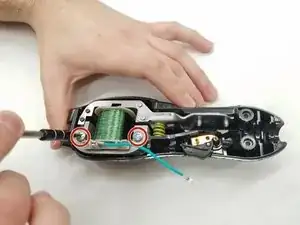

  11. AHOV5XuygCgcrgfS

    • Remove two 23.0 mm JIS #1 screws attaching motor base to device body.

  12. yDOBmQJUtYFRJpBY

    • Lift motor base straight up from device body to remove.

Abschluss

To reassemble your device, follow these instructions in reverse order.
