Einleitung
Use this guide to replace the motor of your Wahl Professional Designer.
Werkzeuge
-
-

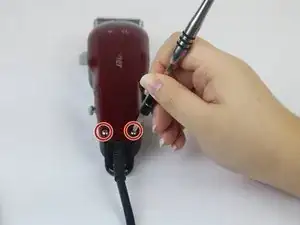

Unscrew the 12 mm Phillips head screws located at the top of the cover and at the bottom two corners, using a Phillips #1 Screwdriver.
-
-
-

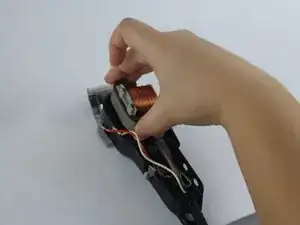

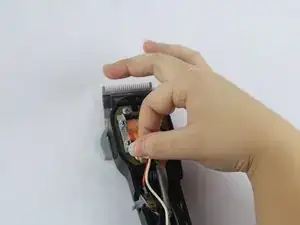

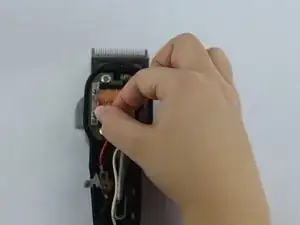

Remove the wires connected to the motor by firmly grasping both sides of a wire and wiggling until it is released.
-
-
-

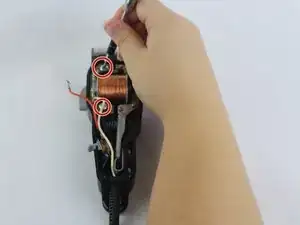

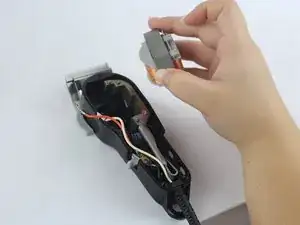

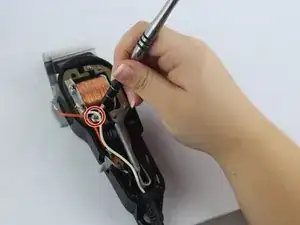

Unscrew the two 20.5 mm Phillip head screw located on the motor using a Phillip's #1 screwdriver.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
