Wahl Professional Designer Power Switch Replacement

Geschrieben von: Sophia Swearengin
  • Kommentare: 1
Wahl Professional Designer Power Switch Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

5 Minuten

Einleitung

Use this guide to replace the power switch on your device.

  1. GRBI2qJPcMXtdVPt
    GRBI2qJPcMXtdVPt
    mTdv66qZ2sjvfico

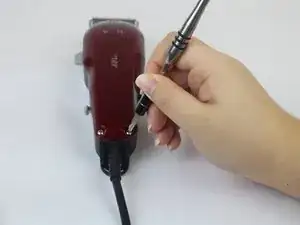

    • Unscrew the 12 mm Phillips head screws located at the top of the cover and at the bottom two corners, using a Phillips #1 Screwdriver.

  2. 5CCCOcSGiGeGBSpf
    5CCCOcSGiGeGBSpf
    ytmxP4qxXXQAqD2P

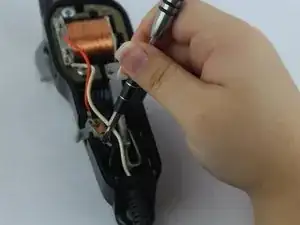

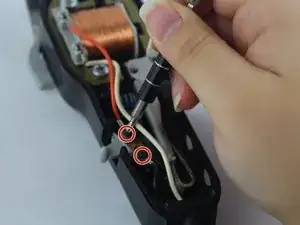

    • Unscrew the two black 5.556 mm Phillip head screw on the power switch with a Phillips #0 Screwdriver.

  3. iUXxedtFkLKAjT1L
    iUXxedtFkLKAjT1L
    xFvvLtSWAWiZfPGm
    H4Z1KZ2TEGGHC6Cf

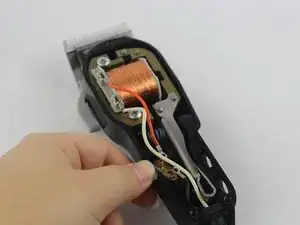

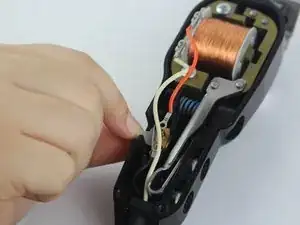

    • Shimmy the power switch off the mount until it is completely removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Sophia Swearengin

Mitglied seit: 27/09/17

718 Reputation

Ein Kommentar

Hello Mrs/ms Swearengin, I’m disassembled my Wahl desingner I’m unable to make the power switch stiff . It’s very loose I can’t recall which screw goes in between two black 5.556 mm Phillip head screw or if it needs a screw at all

Carlos Olvera -
