Einleitung

This guide will show you how to replace the battery of the Waka Waka Power Plus.

  1. wjqpBt4pQYFRDmpy
    • You'll need a 50mm Phillips screwdriver and a flathead screwdriver as thin as possible.

  2. VlO6juOMYaIMMXeJ
    VlO6juOMYaIMMXeJ
    v4ySIbGG2iQxA6Xw

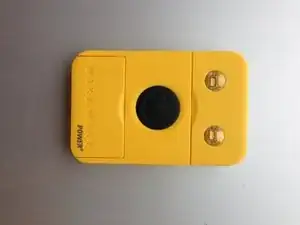

    • Place the Waka Waka with the yellow side up. Flip the standard just as in the right picture.

  3. CjGmfJs3PjuM2XPp
    CjGmfJs3PjuM2XPp
    QpPErn4FOCY4tgUB

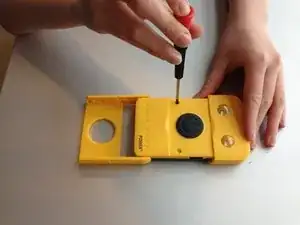

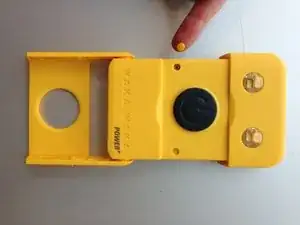

    • First you remove the two yellow rubbers using your nail or the screwdriver. Than use the Phillips screwdriver to remove the two screws.

  4. PaSWRWSsTVkCIgdq
    PaSWRWSsTVkCIgdq
    2h5IWe1E3DCJqkL1
    5i2UrJXNG1HFeOSh

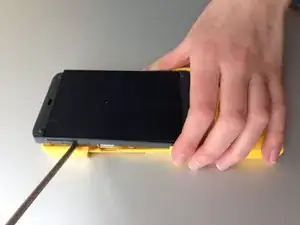

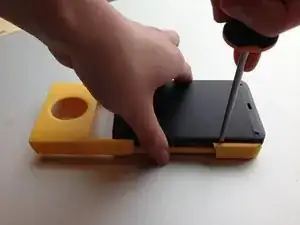

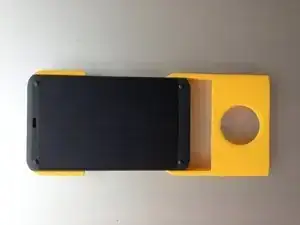

    • Turn the Waka Waka upside down. Make sure the Waka Waka is placed on a flat surface. Place the flathead screwdriver between the yellow and the black part as can be seen in the second picture. Force will be needed. If one side came loose, do the same for the other side.

  5. SU5OPmXsHdwBWdKs
    SU5OPmXsHdwBWdKs
    jgxtBMAYFWvgBHSI
    QUVC2XbEgFqAZ4Xu

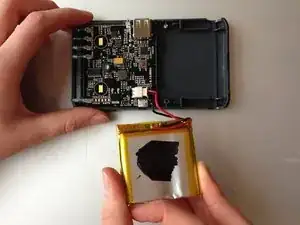

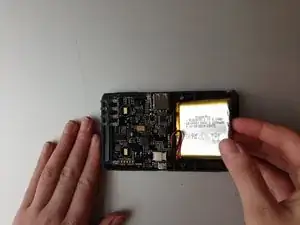

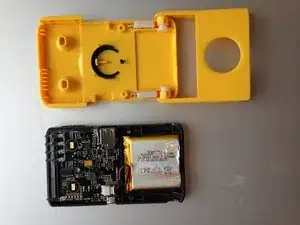

    • Now you see all the components in the Waka Waka. The battery is attached to the case with tape, so you have to use force to pull it off.

  6. CtCRWVCwc1KLtKwH
    CtCRWVCwc1KLtKwH
    yUx66eeGLpU33PRo

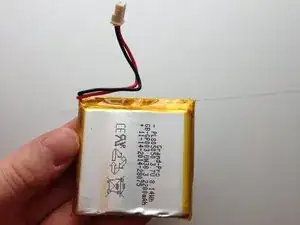

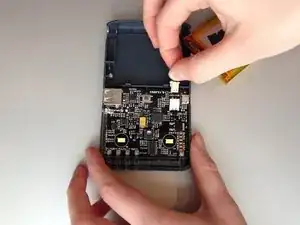

    • Remove the battery from the PCB by pulling the cables out of the clicking system.

  7. uv1hBFeHZGFRAhai
    uv1hBFeHZGFRAhai
    QqEjLDwXCucUUmtJ

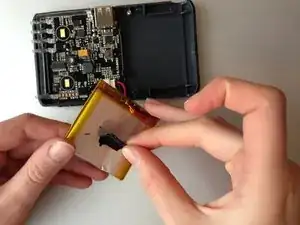

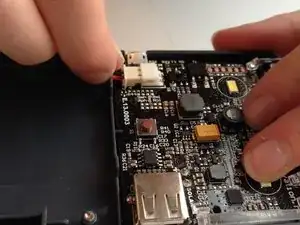

    • While placing the new battery, make sure the connector is not upside down as you can see in the first picture. Click it in the PCB.

  8. LkgafFJUahbaVJar
    LkgafFJUahbaVJar
    mLTKPbEZggGm4yoC

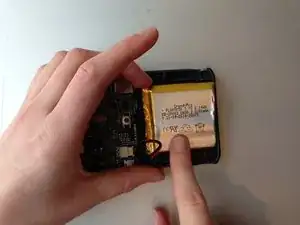

    • Use double sided tape to attache the battery to the case. Place the battery back in the case as shown in the second picture.

  9. 4TGvyqHyKtUhHaaS
    4TGvyqHyKtUhHaaS
    VWOSHo4rnZ2SMjT1

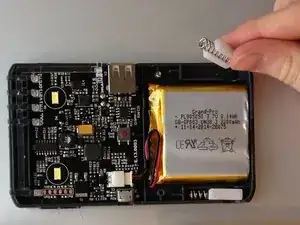

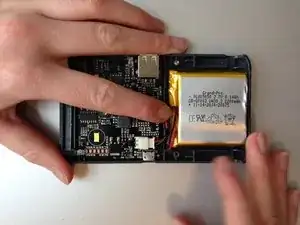

    • Push the electricity cables aside. Place the springs in the case next to the battery.

  10. MG2f1Iop25NjncQu

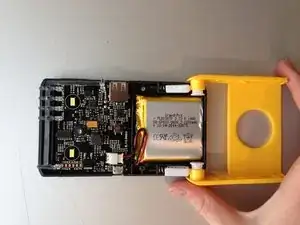

    • Place the standard. Make sure the standard is placed in the right position.

  11. ktCFUQm16BHWPxib
    ktCFUQm16BHWPxib
    XDsIGjahiLqTUkxv
    LOcR6LOeaBOjaYtI

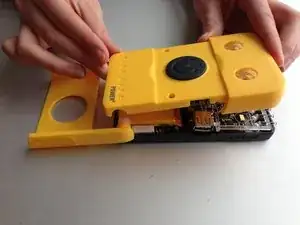

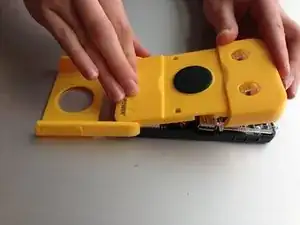

    • Place the yellow part above the other half. First push where the springs are placed. Use force. Than push the rest until you hear a click.

  12. pkOdTOJd5ZUTEOB3
    pkOdTOJd5ZUTEOB3
    PwIsOVmyUMUDXYLv

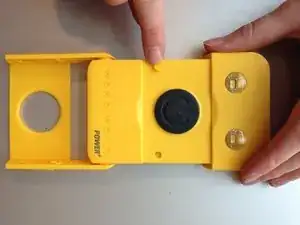

    • Replace the screws and the yellow plugs. Check if everything is working again.

Abschluss

To reassemble your device, follow these instructions in reverse order.
