Walker Brake Cable Replacement

Geschrieben von: Andre Arguelles
  • Kommentare: 5
Walker Brake Cable Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

45 Minuten - 1 Stunde

Einleitung

Many depend on walkers to live their daily lives and continued use can wear down brake cables.

  1. r6SaZFQXx4ZcB2jg
    r6SaZFQXx4ZcB2jg

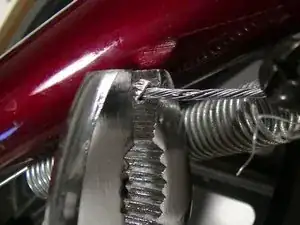

    MXOLVTTsuAlXoxfV

    • Locate the wire cap near the brake at the bottom of the wheel

    • Use a set of pliers to remove the wire cap.

    • Be sure to pinch the cap at the base to release the wires.

  2. RgsQ6ZRulX2nQawS
    RgsQ6ZRulX2nQawS
    MPVD4OGHX5SQK5yP

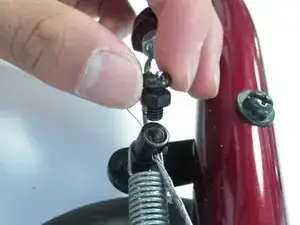

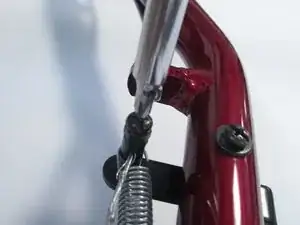

    • Locate the screw that fastens the wire to the brake shoe.

    • The screw is black and is adjacent to the spring hook not connected to the wheel.

    • Use the Phillips (PZ2) Head screwdriver to unscrew the fastening bolt and nut.

  3. yFjfYvro36jLgeae

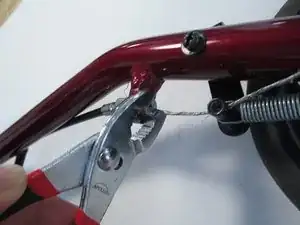

    yFjfYvro36jLgeae
    2GQ1ys5W2F5XsFGl
    ZWBFxROlFpvDefoD

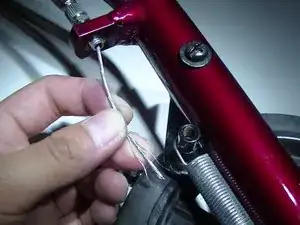

    • Use pliers or wrench to undo nut that secures the wire to the body of the walker

    • Thread the cable wire through the unfastened brake loop and nut.

  4. NZhvfiSKLrfSruYa

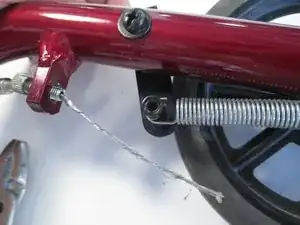

    NZhvfiSKLrfSruYa
    YtTDQAFAuODLp6Fw

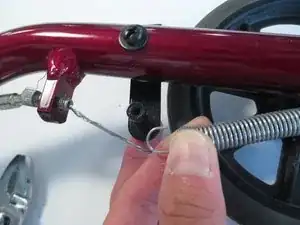

    • Unhook the spring connecting the brake shoe to the wheel.

    • If the spring is damaged, you can also completely remove and replace the spring by unhooking to spring on the opposite end.

  5. NxIMFObn2DeQMYvc
    NxIMFObn2DeQMYvc

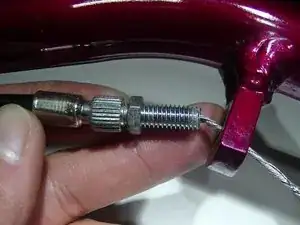

    wHUOubMGpj3NFe6C

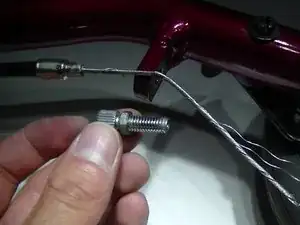

    5BE3bgMnk3dCjikJ

    • Unscrew the loose bolt and wire from the body and remove by threading it through the wire.

  6. rrVTsZ5CxQHhSOBA
    rrVTsZ5CxQHhSOBA

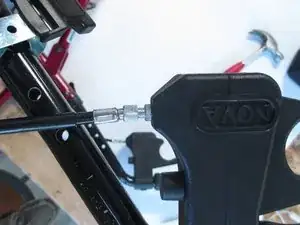

    B4eEd4ruhwpoahl2

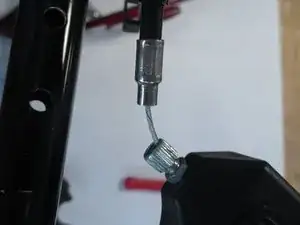

    6naN1eFhXKjdNAyD

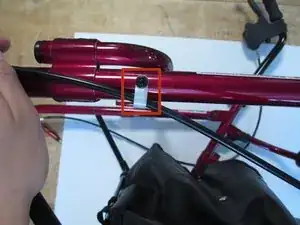

    • Thread the cable through the white collar halfway up the body of the walker.

    • Pull the cable sleeve off the cable to expose the metal wires.

    • The cable sleeve is black and plastic with metal caps at each end.

  7. VaPtFTAWZZUv5hOx
    VaPtFTAWZZUv5hOx
    uHAbJb4MMLvKXtSu
    6QstLMpdah6P4BeU

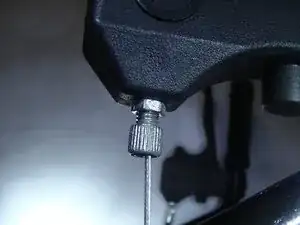

    • Follow the wire up to the opposite end of the wire that attaches to the brake handle.

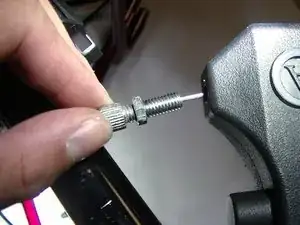

    • Use pliers to unfasten the bolt from the plastic handle.

  8. kv6KNaosfEUYeWdk
    kv6KNaosfEUYeWdk
    afgVQVTYeZwCy22t
    itf2FAschOyNPGI2

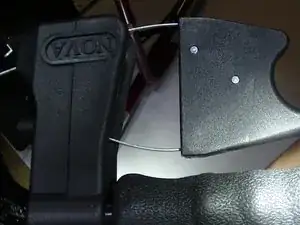

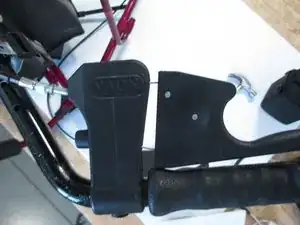

    • Pull the lower handle out of the plastic casing.

  9. BhNEUtPOZLvVwSPo
    BhNEUtPOZLvVwSPo
    LhcvBFwGlaLNOASQ
    bE1RgmcPypTB1N1X

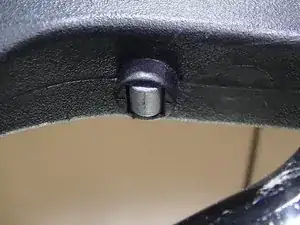

    • Locate the plastic wire anchor cap and use a pair of pliers to remove the cap.

    • Use the hammer to dislodge the wire anchor.

  10. raqXKxEkiPwrPsoc

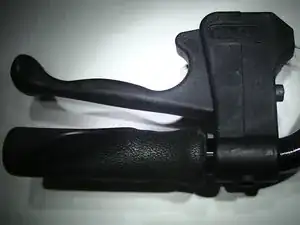

    raqXKxEkiPwrPsoc
    tRFoIGdLURkOtyOM

    • Completely remove brake handle and wire by threading through the plastic covering

    • Follow instructions in reverse to reassemble.

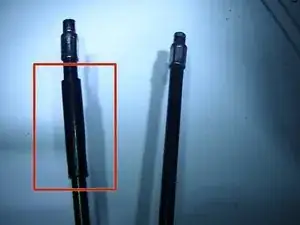

    • When assembling sleeve, make sure the thicker end (boxed) of the wire is adjacent to the plastic brake handle.

    I can't get the brake to hold when it is standing

    Cathy Yandell -

Tinte & Feder

Andre Arguelles

Mitglied seit: 24/02/15

288 Reputation

4 Kommentare

The brake cable listed in these instructions is in fact 1.6 mm dia, which is a standard bicycle brake cable, although I’m not sure what kind of bullet it has on the end. So you could also get this at a bike shop.

The brake cable housing is more complicated. Length is 35 inches to the shoulder of the bushing on one end to the shoulder of the bushing on the other end. The outside diameter of the housing is 6.0 mm. Standard bicycle brake cable housings are 4.0 or 5.0 mm in diameter, and their bushings have simple flat ends without shoulders. Thus, it appears that you cannot buy this part at a bike shop. But it looks like they are available from here:

http://www.spinlife.com/critpath/match.c...

or here:

http://www.phc-online.com/Brake_Cable_Co...

I recommend putting additional cable ties on the brake cables, especially if the walker is frequently plopped in and out of a car. They tend to catch on things and get bent out of shape.

jerrykrinock -

How do you replace a broken hand brake on a rollator walker how do you get the hand grip off

cherryfulbright -

Hi guys,

Thanks for the advice, it helped a lot. I think the biggest risk is getting a cable that is too thick. The existing one on my Mum’s ‘appears‘ to just be a bit smaller than 1.5mm, so I found this 1.4mm cable on eBay. 2 cables for $5.50 including postage.

https://www.ebay.com.au/itm/193828834770

Installed it and it worked a treat. If this seller is no loner around, you want to search for 1.4mm brake cable and make sure the ‘block‘ at the end looks the same.

I have seen the exact same cable selling at ‘Specialist‘ websites for $25.00 each - such a rip off. Just taking advantage of our older people.

waigyd -

how does the cable weave in around the handle rollers

stephen roquet -
