Wand Company Star Trek Communicator Silver Plate Replacement

Geschrieben von: Garret Moses
  • Kommentare: 0
Wand Company Star Trek Communicator Silver Plate Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

5 - 10 Minuten

Einleitung

This detailed guide will cover the particulars on how to replace the middle Silver Plate in the event that it becomes damaged or bent.

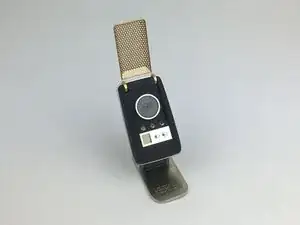

  1. L5VRQhQUXXHADTjS

    • Power off the Star trek Bluetooth Communicator before disassembling.

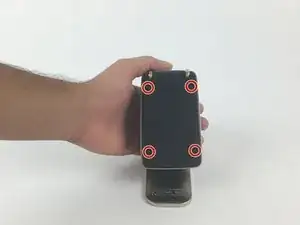

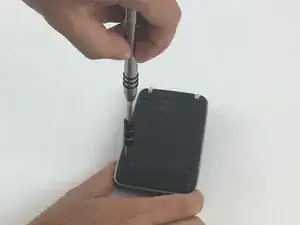

  2. FJGppDBNgIJFPpe2
    FJGppDBNgIJFPpe2
    CBSDM6SIoNNPEnJo

    • Remove the four T6 Torx screws (1.70mm) located on the back of the device.

    • Remove the black plastic cover by gently pulling it.

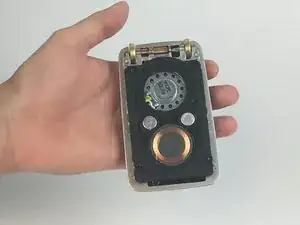

  3. FCDvha25tKdH4sAV
    FCDvha25tKdH4sAV
    JJiuVFsRpaGCcN16

    • Remove the protective foam located around the speaker and charging magnets.

    • Be careful not to lose the two magnets located between the microphone and the speaker. The magnets can be easily removed if they come in contact with other magnetic materials.

  4. BD62jHYtCSGaw4Uh

    • Remove the two Phillips PH0 (0.9mm) screws located to the side of each magnet.

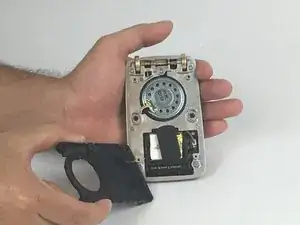

  5. o1GSEMkJcijgowuf

    • Remove the black cover.

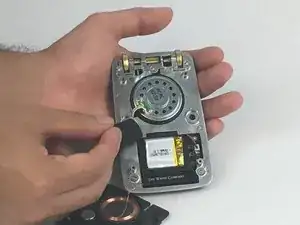

  6. pCDUUDlKYpPuYYXU

    • Remove the protective foam attached to the battery.

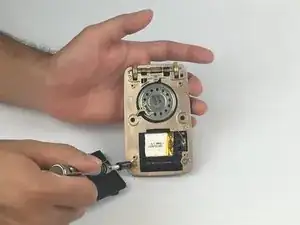

  7. iIWQmjmDWEPYcJon
    iIWQmjmDWEPYcJon
    xxRIHNranEjuh3oB

    • Remove the five Phillips PH0 (0.9mm) screws located at the top and bottom of the silver plate.

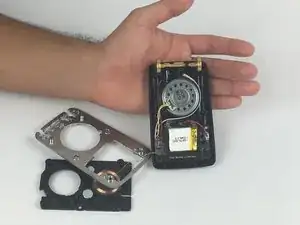

  8. oGyDxndCEnVKEnkU

    • Remove the silver plate.

Abschluss

To reassemble your device, follow these instructions in reverse order.
