Waring Pro SB30 Hot Plate Replacement

Geschrieben von: Sun Fai Lau
  • Kommentare: 0
Waring Pro SB30 Hot Plate Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

20 Minuten

Einleitung

The hot plate is held in place by multiple screws along the burner ring and electrical wires. When free from the frame, take care when removing the iron plate itself as it is fairly dense.

  1. DZTFyhcSDb4LUUbi

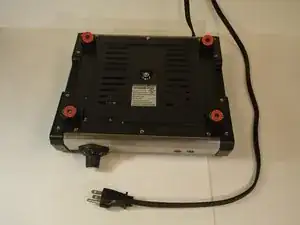

    • Remove the screws on the back panel with the #1 Phillips screwdriver bit.

    • The screws in the rubber legs of the burner do not need to be removed.

    • If the back panel has never been opened before, the screws may be more difficult to unscrew.

  2. OLTcFLHSgcfRI4Bk
    OLTcFLHSgcfRI4Bk
    iDFyIR4ufW3PsbdD

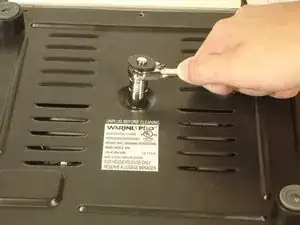

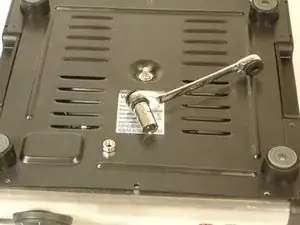

    • Using a wrench, remove the bolt from the center of the back panel.

  3. JwOLgrss4YW1sSgY

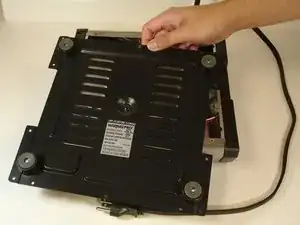

    • The back panel can now be easily lifted off.

  4. BJQuiwTEamxF3UBu
    BJQuiwTEamxF3UBu
    FntrwE32uSKDiPIV

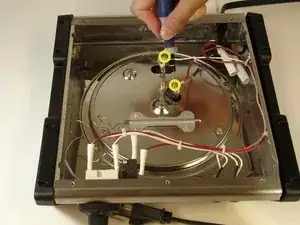

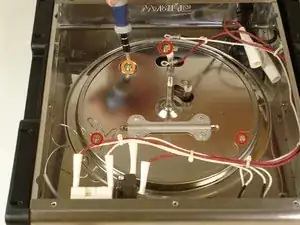

    • Remove screws #1 Phillips screwdriver bit.

    • The interior edges of the metal frame are sharp and can cause minor cuts.

    • 3 screws on the perimeter of the circle

    • 1 screw in the circle

    • 2 screws on the eletrical stands with wires

  5. xwsJYn1gK3UijEYd
    xwsJYn1gK3UijEYd
    HDD5JZL35fZK5T6s

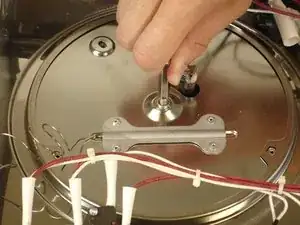

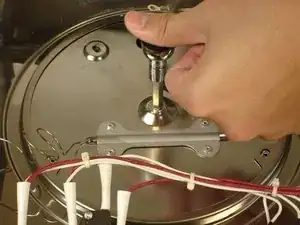

    • Remove rod from the center of the plate with a wrench.

  6. NQdBQChgODbB1et5
    NQdBQChgODbB1et5
    sXqqI6tSLSPaZwcH

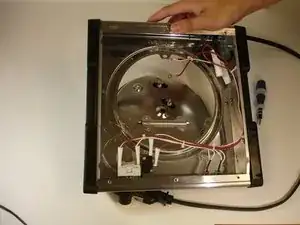

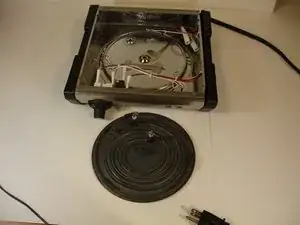

    • Remove plate carefully as to not damage internal components i.e. insulator, metal frame, wires, etc.

Abschluss

To reassemble your device, follow these instructions in reverse order.
