Waring Pro SB30 Plastic Sides Replacement

Schwierigkeitsgrad

Difficult

Schritte

5

Zeitaufwand

25 - 30 Minuten

Einleitung

The plastic sides can become damaged, melted or warped when using a pot larger than the burner. So be sure to remove the back panel first before pulling these sides off.

The screws are located along the interior sides of the metal frame, so consider wearing gloves when removing the screws to avoid cuts from the sharp edges.

  1. DZTFyhcSDb4LUUbi

    • Remove the screws on the back panel with the #1 Phillips screwdriver bit.

    • The screws in the rubber legs of the burner do not need to be removed.

    • If the back panel has never been opened before, the screws may be more difficult to unscrew.

  2. OLTcFLHSgcfRI4Bk
    OLTcFLHSgcfRI4Bk
    iDFyIR4ufW3PsbdD

    • Using a wrench, remove the bolt from the center of the back panel.

  3. JwOLgrss4YW1sSgY

    • The back panel can now be easily lifted off.

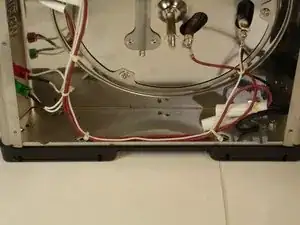

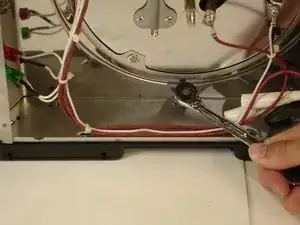

  4. cjMPM4h1IeY1L4Lb
    cjMPM4h1IeY1L4Lb
    uHi1TT5GZWasy3gk

    • Using a #1 Phillips screwdriver bit or a ratchet wrench with a Phillips screwdriver bit to remove screws located on the interior frame.

    • The interior edges of the metal frame are sharp and can cause minor cuts.

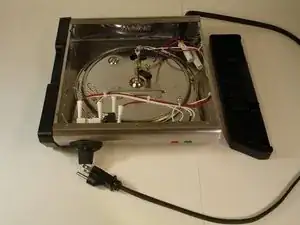

  5. AdX4t5KqHTbCVrnB

    • Plastic sides should be easily removed after all screws are taken out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
