Water Damage on main board of Nokia 206 RM873

Geschrieben von: Kevin D
  • Kommentare: 5
Water Damage on main board of Nokia 206 RM873

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

30 Minuten

Einleitung

Hello all, today we will repair a water damaged phone.

it's a simple cell phone and quite easy to repair.

enjoy

  1. xK5nJNqpqp1QPhfv
    xK5nJNqpqp1QPhfv
    TAepnotVywEiYDhi
    JEOFxWHKcaqmTIDc

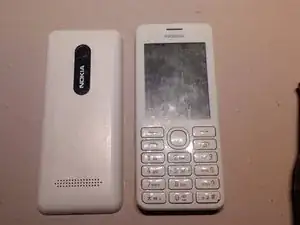

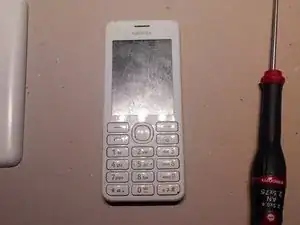

    • Remove back cover & battery.

  2. dPUVvhkBUrD6NDK4
    dPUVvhkBUrD6NDK4
    FPiQtEQtxsw4Gkgp

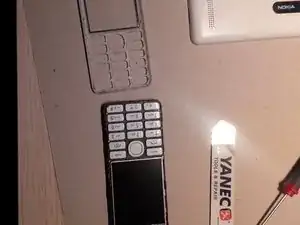

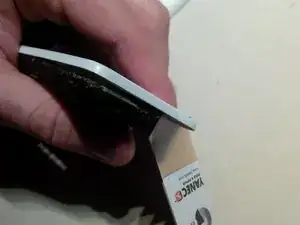

    • Remove the front case by prying it open. You will hear clicks.

    • Be careful with taking off screen if you use a spudger.

  3. WysdhxXgwANhKFUm
    WysdhxXgwANhKFUm
    ssODAUurXcRZGVb6

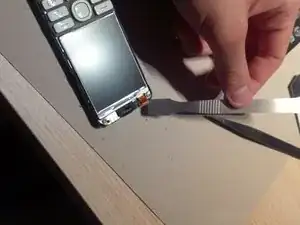

    • Use a Torx screwdriver to remove the screen screws.

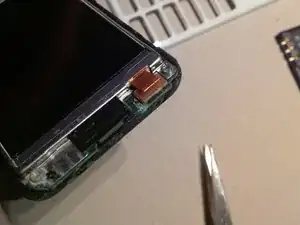

    • Use a spudger or tweezers to remove the connector of the LCD screen.

    Nokia 206 display and charger

    Mithilesh Yadav -

  4. hIaBojy3jLxOBvgP
    hIaBojy3jLxOBvgP
    XZ4tUKoI3HWnEttu
    2rYa1ACTXBiR43fQ

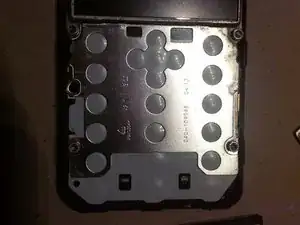

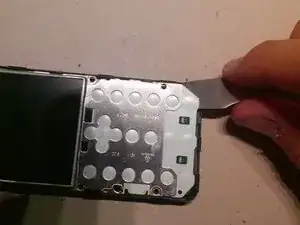

    • Remove keyboard by prying it open with a spudger.

    • The keyboard is secured with adhesive, be careful!

  5. bwRvMUvVe54gDQxw
    bwRvMUvVe54gDQxw
    eIS3Env6D3AW2GNK
    Uv5GjD3HKGfT1AgZ

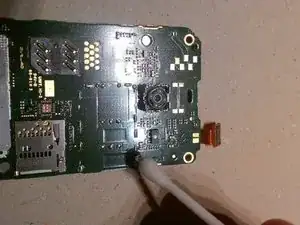

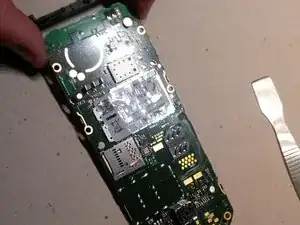

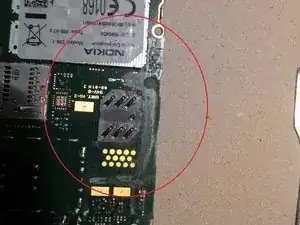

    • The PCB board had water damage, see this in picture 3.

    • To remove the corrosion, dab a cotton swab with a little distilled water on the corroded area, the corrosion will disappear.

  6. ksqhGDDKC6FMCNUg
    ksqhGDDKC6FMCNUg
    B21QGRwJ2bcYXaDE

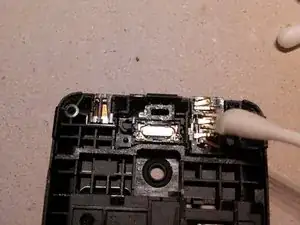

    • How and where to use the cotton swabs.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Kevin D

Mitglied seit: 02/05/14

7102 Reputation

4 Kommentare

no use .it is not switching on . replaced with good batter also. no on

nabhan75 -

try to clean with an ultrasonic bath.

measure out powerrail.

measure out the voltage coming in on board. try to see if you have short.

Kevin D -

Nokia 206 display and charger pin

Mithilesh Yadav -

Not working kiy 1.2.3 and colling ricev kiy not working

K .M Jugesh -
