Einleitung

Full dissassembly of the Waves Kitchen Line sandwich toaster. Showing all steps on how to disassemble the toaster.

  1. WJlMxhlSIk6elMBE

    • Unscrew four Phillips #0 screws of the black top plate on the inner side of the sandwich toaster.

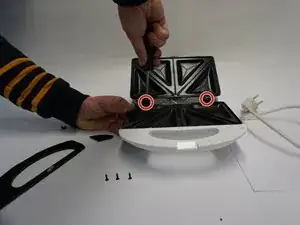

  2. huPTCkJYlWMYUjcw

    • Unscrew two Phillips #0 screws of the top grill plate.

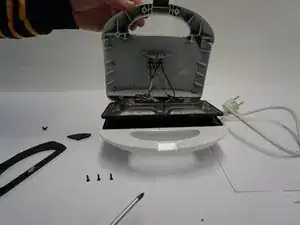

  3. L4RYXRGawUbZc5pJ

    • Remove top grill plate from the base.

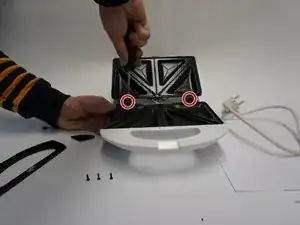

  4. 1KLPiyyCCoNtCQM2

    • Unscrew two Phillips #0 screws of the lower grill plate.

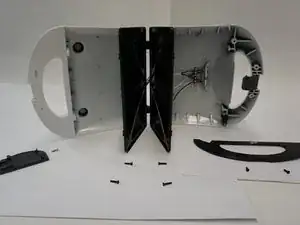

  5. f4K4BsnKQsL1RChJ

    • Remove lower grill plate from the base.

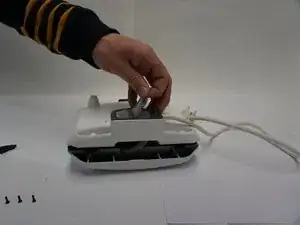

  6. t6qHY2E1Ex6mONSg

    • Remove sticker from the bottom of the base.

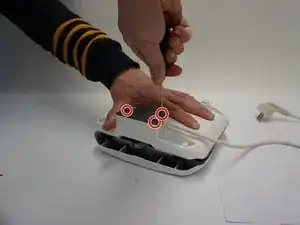

  7. 2lYxsUuIrKOvWZU6

    • Unscrew three tri-wing screws of the plate on the bottom.

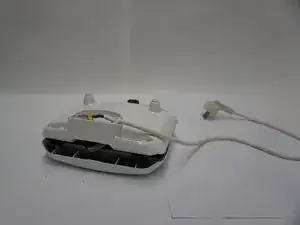

  8. 5ZIA3KEvQTIAslib

    • Remove plate from the bottom of the base.

Abschluss

To reassemble your device, follow these instructions in reverse order.
