Wen 2307 Speed Adjustment Assembly Replacement

Geschrieben von: Dominick Chavez
  • Kommentare: 0
Wen 2307 Speed Adjustment Assembly Replacement

Schwierigkeitsgrad

Easy

Schritte

12

Zeitaufwand

15 Minuten

Einleitung

If the device is not changing speed it may be because of a broken speed adjuster.

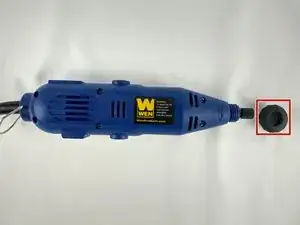

  1. skEMWKMOu2MNrLAV

    • Unscrew the locking sleeve.

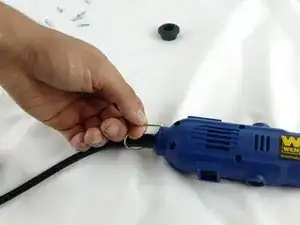

  2. FkWQdAgIBd1gwCqK

    • Remove the hanging clip.

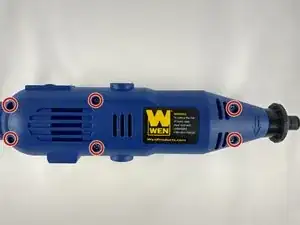

  3. afJPUm6WITsGI1eE
    afJPUm6WITsGI1eE

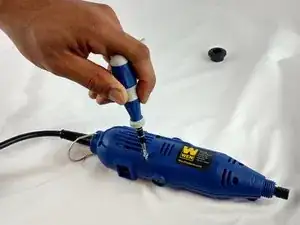

    fn1OUSRIO2DxKuGa

    • Unscrew the six 8mm PH2 screws.

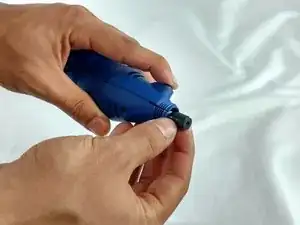

  4. 2EGrMcBLsQ5iSnPN

    • While pressing the spindle lock button, unscrew the collet nut and remove it along with the brass collet.

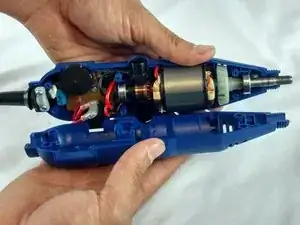

  5. WTj1SH1pmWKAYUJl

    • To remove the front panel, pry the device apart while holding the device with the other hand.

    • The front panel should come out easily.

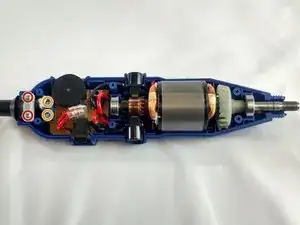

  6. MdgUKFuqcVZdABGE
    MdgUKFuqcVZdABGE

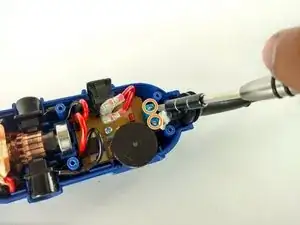

    4AdjGCUCebSNjPr5

    • Identify the screws.

    • Unscrew the two 3mm phillips PH2.

    • Don't forget to put them appart from the ones unscrewed before.

    • Don't forget to put them appart from the ones unscrewed before.

    • Phillips PH2

    • Flathead 2.5mm

  7. FZlA6NGGaYAIT2eQ

    • Remove the place boar carefully.

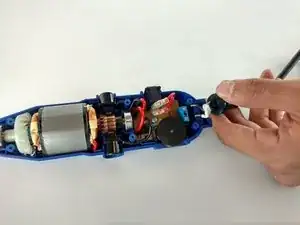

  8. HIB2EBnPFCChBdeC

    • Pull out the power cable connectors.

  9. qxnCQiwETNIcPwMn

    • Pull out the cord sleve for the new cable replacement.

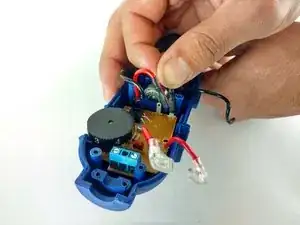

  10. E6EkLdLAAi4qNMXe

    • Remove the connected wiring from the circuit board.

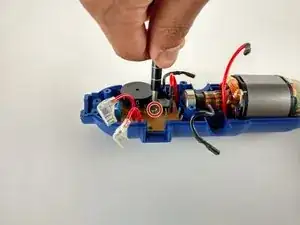

  11. MD1BLpgpEKS4CEfZ

    • Remove the single 4mm screw retaining the circuit board.

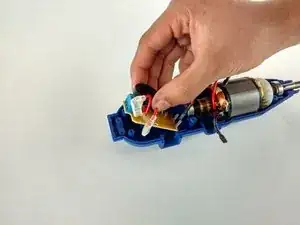

  12. XZ4wrqxlrv4cO3ZK

    • Gently pry the circuit board from the back piece.

Abschluss

To reassemble your device, follow these instructions in reverse order.
