Westcott iPoint Evolution Outer Casing Replacement

Geschrieben von: Lilly

Kommentare: 2

Westcott iPoint Evolution Outer Casing Replacement

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

10 - 20 Minuten

Einleitung

In this guide, you will learn how to remove the outer casing of the Westcott iPoint Evolution pencil sharpener. Use this guide to replace the casing or to access the sharpener's internal components.

Werkzeuge

Essential Electronics Toolkit

Schritt 1

Step 1: Start with the back of the pencil sharpener facing you.
This allows you to locate the power source.

Schritt 2

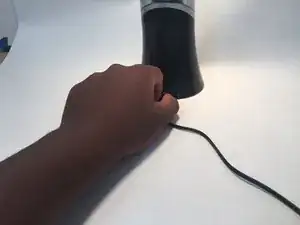

Step 2: Grab the end of the plug located at the bottom of the sharpener and pull it out gently.

Schritt 3

There are three parts of the sharpener.

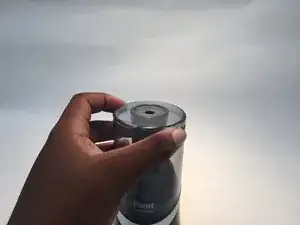

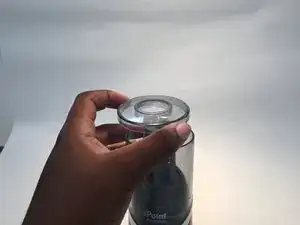

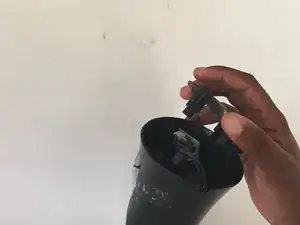

Step 3: Grab the very top of the sharpener, twist it to the right and lift it up to remove it.

Schritt 4

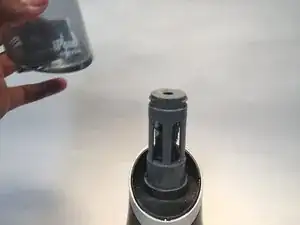

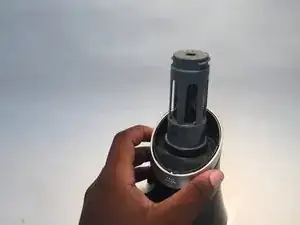

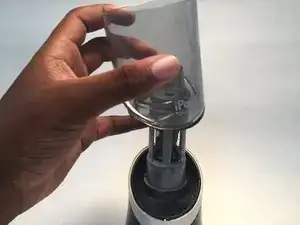

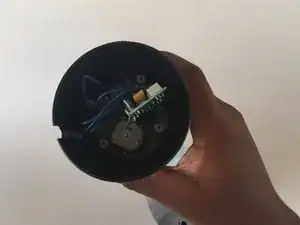

Step 4: Grab the center of the sharpener and lift it up to remove the piece.

This is stuck on my battery operated version

Travis Blair -

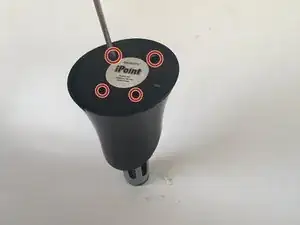

Travis, for the battery-powered model, that outer casing is screwed from the inside. You need to remove the four (hidden) screws on the bottom of the unit first. Two of them are in the batt. compartment -> open it, pull out the batteries, the screws are at the bottom. They go out with a #0 Phillips. The other two screws are hidden under the rubber pegs glued to the bottom panel. Remove them, and you’ll reveal a pair of “tunnels” where the screws are hiding. You can remove those with a #0 Phillips too.

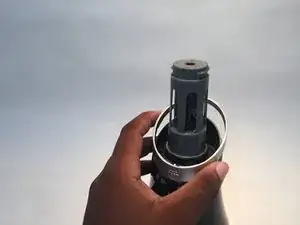

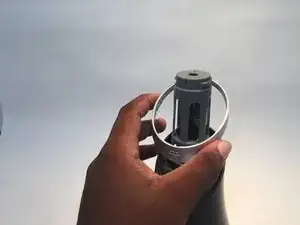

Once you do all 4 screws, the bottom panel will let go, and you will be able to remove the transparent case from step 4, the ring from step 5, and the rest of the entire sharpener.

Hope this helps, I just discovered this myself while trying to fix my batt-powered iPoint, which stopped spinning (the plastic gear that links the motor and the sharpener got loose, plus I have rust on the battery contacts that I needed to wipe out)

Martin Scavone -
