Wie trage ich Wärmeleitpaste am besten auf

Geschrieben von: Miroslav Djuric
  • Kommentare: 69
Wie trage ich Wärmeleitpaste am besten auf

Schwierigkeitsgrad

Mittel

Schritte

7

Zeitaufwand

5 - 20 Minuten

Einleitung

Der Auftrag von Wärmeleitpaste ist essenziell, um den Prozessor kühl und zufrieden zu halten. Folge dieser allgemeinen Anleitung, um nach dem Entfernen eines Kühlkörpers oder CPUs während einer Reparatur Wärmeleitpaste neu aufzutragen. Für speziellere Anweisungen zu deiner CPU schau dir Auftragmethoden von Arctic Silver an.

Um Wärmeleitpaste bei Smartphones aufzutragen, benutze diese Anleitung.

  1. JPJfGyl3XRIerIU4

    • Wärmeleitpaste ist zuständig für die Übertragung von Wärme vom Prozessor zum Kühlkörper. Der Zusammenbau eines Computers ohne Wärmeleitpaste führt zu einer Überhitzung des Prozessors und schädigt diesen nachhaltig.

    • Vor dem Auftragen neuer Wärmeleitpaste müssen jegliche Rückstände alter Paste vom Kühlkörper und vom Prozessor entfernt werden.

    the best way to clean a CPU or a GPU is to use a spudger and ISOPROPYL its an alcohol that dries fast

    USE WITH CAREFULLY DO NOT DRINK OR USE IT FOR ANY OTHER PURPOSE.

    YOU CAN USE ISOPROPYL TO CLEAN WOUNDS OR CPU'S OR GPU'S

    ISOPROPYL

    What is isopropyl

    Ronald -

    Please don’t use isopropyl alcohol to clean wounds—it is actually detrimental to cellular healing. Rinsing copiously with normal saline or clean water is much better.

    Yoron -

    If you cam here from the PS 4 fan replacement page, I highly recommend the “pea” method instead.

    Donovan Ray -

  2. CoewApRTPTDYnFLl
    CoewApRTPTDYnFLl
    ZbPTUPJaGQktIDqv

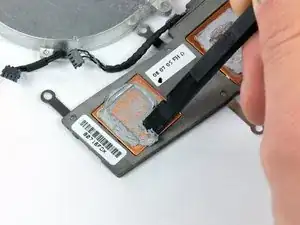

    • Verwende das flache Ende eines Spudgers, um so viel verhärtete Wärmeleitpaste wie möglich von den Kupferkernen der Kühlkörper zu entfernen.

    Personally, I used a BD Alcohol Swab (Isopropyl Alcohol 70%) to wipe down the heatsink, and didn’t even bother with using the spudger to scrape off the old thermal paste. This ensured a quicker and complete removal of the old paste.

    MarkyMark -

    Dont remove the thermal paste with the spudger. You might scratch the heatsink. Its not a great deal as the new paste will fill those scratches. But still better to not scratch it in the first place.

    sebastian.wittl -

  3. oMmP4lrpTn1fsGvU

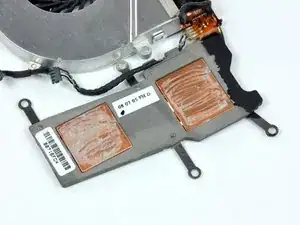

    • Nach dem Abkratzen der verhärteten Wärmeleitpaste bleiben immer noch Rückstände auf den Kupferkernen.

  4. epsFyUYp1DOjNAMG
    epsFyUYp1DOjNAMG
    RLVE56XCkn5M55Mw

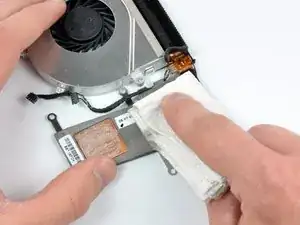

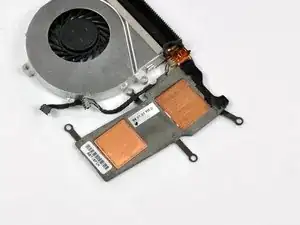

    • Verwende einen Kaffeefilter oder faserfreies Tuch mit etwas Isopropylalkohol (mindestens 90%ig), um die Rückstände der Wärmeleitpaste von den Kontakten des Kühlkörpers zu entfernen.

    • Anstelle von Isopropylalkohol kannst du auch einen speziellen Entferner, wie z.B. Arctic Clean Wärmeleitpastenentferner benutzen.

    • Sobald alle sichtbaren Rückstände von der Oberfläche entfernt sind, verwende einen neuen Kaffeefilter oder ein sauberes Tuch und Isopropylalkohol, um jegliche Fettrückstände zu entfernen und die Oberfläche vorzubereiten.

    • Berühre niemals den Chip oder den Kühlkörper, oder setze sie Staub und Dreck aus. Schon ein Fingerabdruck kann ein großes Hindernis für die Wärmeübertragung sein.

    • Lasse den Kühlkörper komplett trocknen.

    Alcohol is fine, I use it and it not only does a better job but is far less toxic. That stuff causes all kinds of cellular damage to you.

    South30 -

    You dont put the instruction on whether we have to put the new thermal paste back again or not? Do we have to, right?? thanks

    Eddy Setiawan -

    If you use ~91% isopropyl alcohol to clean, it will evaporate rapidly and leave no residue (assuming you wiped away anything that wasn't the alcohol or water in the 91% solution you just used). Your prep is done, there.

    Mr. Porter -

    I really wish the author would have stated what IPA meant. I had to Google it. The only information given, as stated, is “a.k.a IPA, 90% concentration or greater), giving no clear statement advising us that IPA is in fact isopropanol.

    Isopropyl alcohol (2-propanol) is also known as isopropanol or IPA.

    MarkyMark -

    Why is it stated that the concentration of alcohol have to be 90% or greater?

    MarkyMark -

    The other 10% is water. I don’t know if it has to do with the evaporation or protecting the electronics.

    Paul van Ekeren -

    Does it ABSOLUTELY need to be 90% or greater?

    DigiVore -

    A friend told be about using lighter fluid a decade ago and I’ve been using that to get thermal paste off ever since. It’s super effective, only requires a little bit and it still evaporates. I highly recommend using that over alcohol unless you really like scrubbing. With lighter fluid it just sweeps it right off.

    J.Keys -

  5. 5bNNPD1mBk2YZHG6

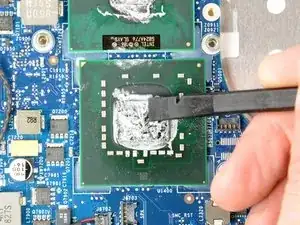

    • Verwende das flache Ende eines Spudgers, um so viel verhärtete Wärmeleitpaste wie möglich vom Prozessor zu entfernen.

    • Verwende keine Metallwerkzeuge für diese Prozedur. Achte darauf, keine Bestandteile des Prozessors zu beschädigen, oder Spuren der Wärmeleitpaste im Inneren des Gerätes zu verteilen (diese können Probleme verursachen).

    you can also use a junk credit card or similar, or a plastic spoon

    Gaspard Leon -

    Obsolete business cards are good too.

    Robert Calhoun -

    How to remove thermal paste remover solution that has got trapped under the cpu chip?

    I have some liquid thermal paste remover that has got trapped under the cpu chip that I want to make sure it is completely removed.

    Osama Maddani -

  6. UvbFQEffQDWhwhIn
    UvbFQEffQDWhwhIn
    tNXJLnRBxsZMX3nu

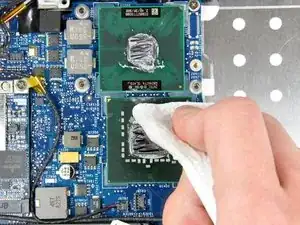

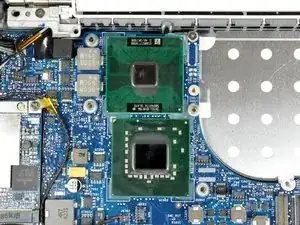

    • Verwende wieder einen Kaffeefilter oder fusselfreies Tuch mit etwas Isopropylalkohol oder ArctiClean Wärmeleitpasten-Entferner, um die Rückstände der Wärmeleitpaste von der Oberfläche des Prozessors zu entfernen.

    • Sobald alle sichtbaren Rückstände von der Oberfläche entfernt sind, verwende einen neuen Kaffeefilter oder ein sauberes Tuch und etwas Isopropylalkohol, um jegliche Fettrückstände zu entfernen und die Oberfläche vorzubereiten.

    • Lasse den Prozessor komplett trocknen.

    Be aware that this picture may not represent how your processor looks. Most of the PS3 fats have a heat spreader over the die. The pictures above show the processors without the heat spreaders.

    Jason Pirok -

    @Jason Pirok yes I realised! Do we remove the heat spreader of the die tho?

    JB Tan -

  7. 6uuYpmynrisGkye5

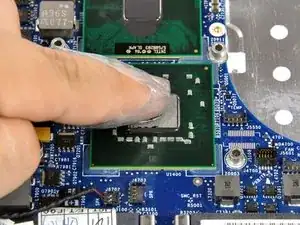

    • Verwende beim Auftragen der neuen Wärmeleitpaste die für deinen Prozessortyp empfohlene Methode - senkrechte Linie (vertical line), waagrechte Linie (horizontal line), Punkt in der Mitte (middle dot) oder Verstreichmethode (surface spread). Beachte, dass sich bei der Verstreichmethode leicht Luftblasen bilden können.

    • Wenn du die Verstreichmethode benutzt:

    • Umwickle die Spitze deines Zeigefingers mit einem Stück Plastik (zum Beispiel Frischhaltefolie).

    • Gebe eine kleine Menge Wärmeleitpaste auf den Prozessorkern.

    • Verstreiche die Paste vorsichtig auf der gesamten Oberfläche.

    • Wenn du aus Versehen etwas Paste auf dem grünen Teil des Prozessors verteilst, ist dies kein Problem.

    • Der Prozessor ist nun fertig für die Installation des Kühlkörpers vorbereitet.

    • Auf den Kühlkörper musst du keine Wärmeleitpaste auftragen. Arctic Silver rät jedoch, den Kühlkörper zumindest leicht zu bestreichen, um die Haltbarkeit der Wärmeleitpaste zu verlängern.

    Some people apply a little dab in the center, and then install the heat sink. It spreads it evenly unlike a finger, and is much cleaner. I use this method on cpus with a heat spreader, and ones with the bare die. You can also apply a dab, and use a razor blade to spread it evenly too. The finger method tends to leave air bubbles, and doesn't spread evenly. I use Arctic Silver 5, but sometimes have to spread it with a blade as it is so thick. I hear that Arctic Cooling MX-3 is suppose to be better. I hate that AS5 can be electrically conductive. It makes me nervous that i will short something out. I hate AS5 200 hour curing time. MX-3 is claimed to not need any curing time, and not electrically conductive, So if you apply the amount that Apple did with the 2006 MacBooks, you will still have a working computer. If apple applied AS5, like they applied thermal paste in 2006, I bet the laptop would be DOA.

    Just my little thoughts on thermal compound.

    Nicholas Ouimet -

    the dab in the center is know as a pea. See http://www.arcticsilver.com/intel_applic... for recommendations on applying the paste to Intel chips, either a pea or a line depending on CPU.

    nirv -

    Swapping out the heatsink on my 15" MBP seemed to go fine. The instructions were clear and easy to follow. My computer had been shutting down immediately and was unusable. I did some research and it sounded like the heatsink was the problem. After reassembling the computer, when I started it up, there was a little puff of smoke from the back left of the keyboard... and... no screen backlight came on.

    The repair solved the problem of my computer constantly shutting down, but now I can only see my screen if I shine a bright light on it.

    Does anyone know what could have happened? If the thermal compound was touching some little wire or something, could it have caused a short?

    jonahwy -

    Zitat von jonahwy:

    Swapping out the heatsink on my 15" MBP seemed to go fine. The instructions were clear and easy to follow. My computer had been shutting down immediately and was unusable. I did some research and it sounded like the heatsink was the problem. After reassembling the computer, when I started it up, there was a little puff of smoke from the back left of the keyboard... and... no screen backlight came on.

    The repair solved the problem of my computer constantly shutting down, but now I can only see my screen if I shine a bright light on it.

    Does anyone know what could have happened? If the thermal compound was touching some little wire or something, could it have caused a short?

    Did you use Arctic Silver? It's possible something shorted, but I'm leaning more toward a lose display cable. Try re-seating the cable.

    Nicholas Ouimet -

    If it's a laptop, it IS a smear spread, not a pea or line. The link http://www.arcticsilver.com/pdf/appmeth/... says so.

    Probably because the laptop pipe mounting pressure is not very high and won't spread it as much.

    Example, the 15" A1226 Macbook Pro has only 5 screws and 3 chips it touches, and they aren't very close to the cores.

    beachfitrob -

    I've replaced the paste on many chips over the years. In my experience, the wiping method tends to leave air pockets unless you're extremely careful and spread the compound very smoothly. It's a lot easier, and more effective imho, to use the pea or line method on ANY chip. The pressure of a laptop heat sync is quite sufficient to spread the compound evenly.

    I do recommend using only compounds which are 100% non-conductive. I also recommend buying a compound with the longest lifespan, unless you are sure you want to go through this procedure every couple of years.

    MoldyOldyComputerGuy -

    I happen to agree with moldyoldy - use a non-conductive grease. The likelihood of the "heat sink" ( its actually a heat pipe) failing is pretty darn low. The crap heatsink compound is more likely the problem. Recently I dropped my early 2013 MBP retina. Long story. Anyway - for the next few days- machine acted odd - reported USB devices pulling too much current- then it started crashing, and finally started locking up- wouldn't boot until it cooled.I was concerned about having damaged the heat pipe, so pulled it off. The compound was dry and crumbly. Odds are the drop cracked this dry gunk and affected the heat transfer. So I cleaned off the old gunk ( denatured ethanol ) and reassembled using old school white heatsink grease. Grease. As in oily as !&&*, like it has been for the 45 years I've used the stuff. Currently, machine idles at about 110F, and never gets above 215F with all eight hyper threads at full bore. The idle temp is 20F lower than it was new. And will never dry out.

    baumann -

    ^ like. I have a similarly misbehaving similar brute and similar skills and resources. I’ll be giving this a try.

    Rib Man -

    With all due respect, I am very skeptical about spreading the thermal paste with your finger, there are a lot of tutorial videos out there on Youtube that provide proof about all the bubble you are going to leave behind that will mess up your heat exchange efficiency

    alfx -

    This aspect is a bit over-rated as to detail. The amount of thermal paste the Apple factories applies to the processor surfaces is huge, spilling onto the green surfaces of the processors. This can be seen once one removes the heat sink component that sits on the processors. Gobs and gobs of thermal paste abounds everywhere.

    dcelander -

    I have a MBP retina 15” early 2013 which has got a black sticker covering the chip and revealing only the core, this sticker has got thermal paste stuck under it when i was using the solution on it , and the sticker has got damaged when I cleaned what was under it, my concern that is is it safe to reinstall the heatsink without this sticker, or will the heatsink make contact with the diodes in the chip and short something out ?

    Osama Maddani -

    Thank you very much!!!! Couldn't have done it without this tutorial:)

    Charles Walton -

    The Arctic Silver page wasn’t super informative. For 3rd to 9th gen core it suggested vertical line, but on the bottom under “previous gen core” it suggested surface spread for “Core™ i5 Mobile/Lap Top Processors Processors”.

    So I did the “Vertical Line”, the only problem being that the metal surface of the processor is very oblong in my processor and all the example images had square surface, so which way is vertical? I put it along the long side of the core, so it would cover the entire surface, but I’m not sure if it is now a horizontal line.

    Antti Valli -

    I was once in a pinch for a thermal paste, and needed a lot of it (it was to repair the contact of cooling coils on a 500 liter beer lagering tank. Thermal paste is expensive. It really contains only two important things. Something with high thermal conductivity, and a material that holds that together. The very expensive ones, with silver have not been shown to be superior to ones with less conductive and less expensive material (i.e. copper) as the component that houses them makes that difference negligible according to my reading. I looked up the thermal conductivity of different materials and was surprised to find graphite has nearly as good conductivity as aluminum. Melted some vaseline, added the graphite (free from the local foundry) and it made a dandy paste that worked very well. Chilling rates on the fermentation vessel back to specs! Vaseline would be a poor choice in a heating environment, but with a little creativity you could probably I-fix-this if you don’t bump into any thermal paste.

    jeff -

Abschluss

Um dein Gerät wieder zusammenzubauen, folge den Schritten für das jeweilige Gerät in umgekehrter Reihenfolge.
