Einleitung

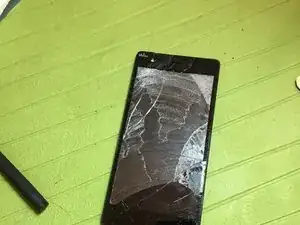

Follow this guide to replace the touch screen and other components inside the phone
-
-

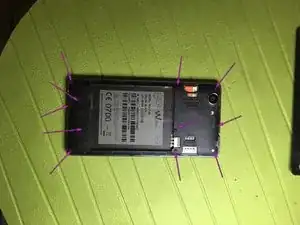

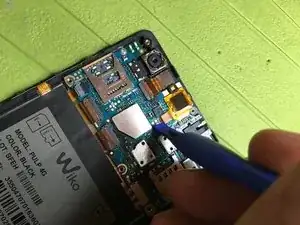

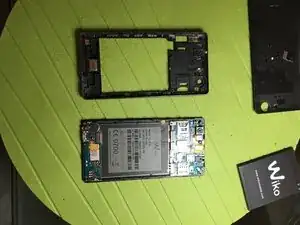

Remove 2 screws securing the motherboard
-

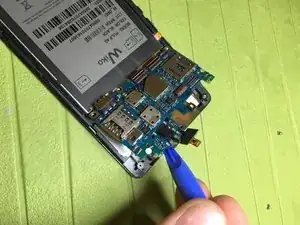

Unfasten the connectors
-

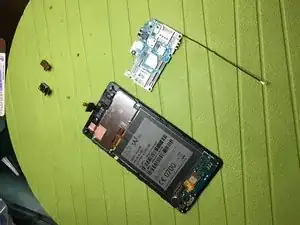

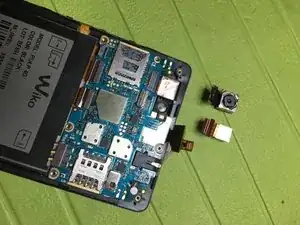

remove front and rear cameras
-
-
-
Heat the phone with a 80-degree plate or with an appropriate dryer
-

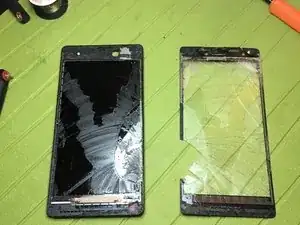

With the help of tools or special thin wire begin to separate from the touch glass display
-
Utmost care not to break the display, be sure to insert between the touch screen display instruments and not between glass and touch screen ..
-
There are no flat key is therefore the only attention to the display
-
-
-
Clean the display from the sticky residue
-

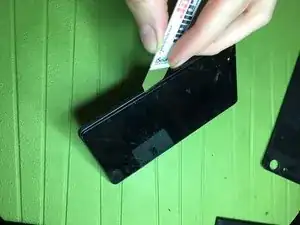

applying adhesive on the edges and the new touchscreen glass
-

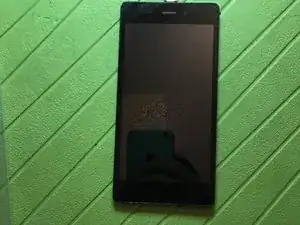

To assemble the device, follow these instructions in reverse order.
4 Kommentare
I replaced a screen on a Acer Wiko Lenny 2 - was very simular to this one. I followed all these steps and it is working BUT the display does not respond as it should. Almost all touches on the outside border of the screen (for example, digit 1 on the left, digit 0 on the right) don't respond quickly, or don't respond at all. What could be wrong? If wonder if I didn't clean the digitizer properly enough...
sorry for the delay.
I had some problem with the touch screen too much more intrusive than yours.
I have secured the edges well with scotch because it does not contact me.
But these Chinese touchscreens do not have good quality so I prefer to buy a screen mounted with touchscreen, so I save a lot of time and work is better and working
Smilzo -
Ciao, come fai a rimuovere i residui di colla dal display, una volta tolto il vetro?
