Wireless LAN card Replacement

Geschrieben von: Armani Tayeh
  • Kommentare: 0
Wireless LAN card Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

5 - 10 Minuten

Einleitung

If your wireless LAN card is damaged or broken or you're having trouble connecting to WiFi with your laptop, replace Wireless LAN card using this guide.

  1. VZHtnkIHGHoBhgKg
    VZHtnkIHGHoBhgKg
    kHDt4DDPMrufYnNq

    • Using the Phillips #1 screwdriver, remove the four 6mm screws on the back of the laptop.

  2. eeoroR1cenRYAlDC
    eeoroR1cenRYAlDC
    vHsIJoHCdR3eTAhu

    • Insert the plastic prying tool and pry the back panel off starting at an edge and moving your way around it.

  3. WVZdIOpAhhmrnSWs

    • Use the tweezers to remove the two connecting wires.

  4. VGRWdZqXKsiHD6u1

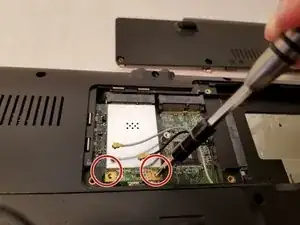

    • Using the Phillips #1 screwdriver, remove the two 2.5mm screws holding down the card.

  5. hrQTDcjVEZkScx2o

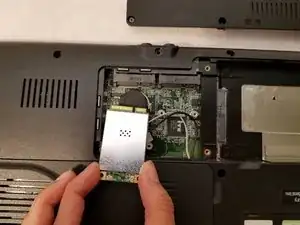

    • Lift and pull the Wireless LAN card away from the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
