Wolf Gourmet WGBL100S Control Board Replacement

Geschrieben von: Cole Gillespie
  • Kommentare: 0
Wolf Gourmet WGBL100S Control Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 20 Minuten

Einleitung

If your blender does not operate, try opening it as per this guide and checking the wires on the control board. If that yields no results, consider replacing the board if possible.

  1. SiF3gwIm1S2se1if
    SiF3gwIm1S2se1if
    3mDi6BE5EeHoFrh5

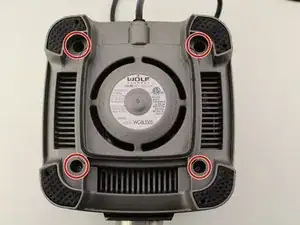

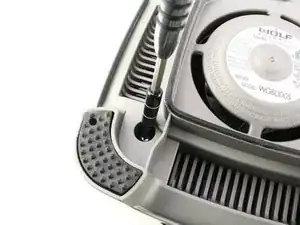

    • Flip the base of the blender upside-down.

    • Remove the four 1/2" long screws in the corners of the base using a Phillips #2 screwdriver.

  2. U5YVgtTAgw6vQVCM
    U5YVgtTAgw6vQVCM
    3vC6tXQAJCKUAktG

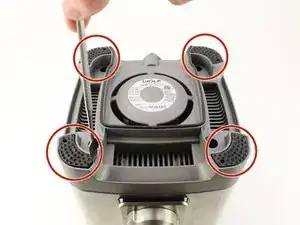

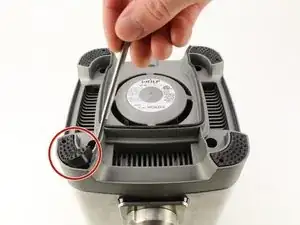

    • Using the metal spudger, pry off one half of each rubber foot.

    • Note that one side of the foot is glued down; pry off the other side.

  3. uQPTTEoVv2XxPMWh

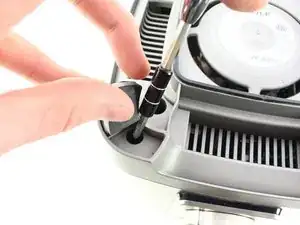

    • Using the same screwdriver, remove the next four 1/2" long screws in the holes under the feet.

    • Pull the base off of the blender.

  4. TqYIFChGNR4RQU3m
    TqYIFChGNR4RQU3m
    AxmVKfqcvpZ2MEXg

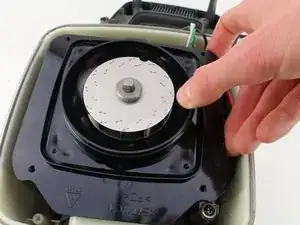

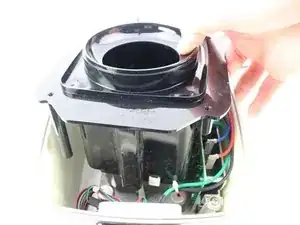

    • Pull off the plastic housing.

  5. EqOBPsOFpgpsghOC
    EqOBPsOFpgpsghOC
    KFNtIK41BPr6VUoU

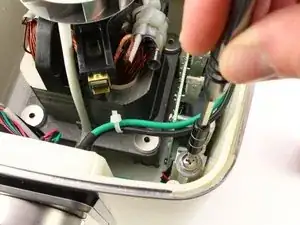

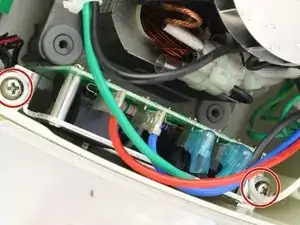

    • Using the same Phillips #2 screwdriver, remove the two 3/4" long screws holding the control board in place.

  6. k2YPGOTLyW2QsItw
    k2YPGOTLyW2QsItw
    aVjOW4vC5IvOWpLu

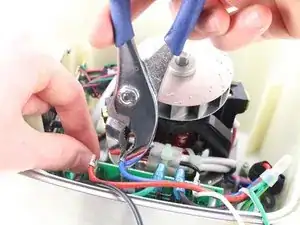

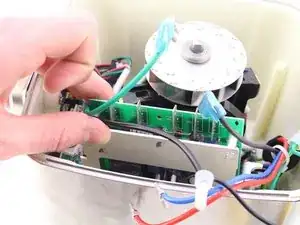

    • Using pliers, pull off all the connectors on the top.

  7. XWTQLXkbHWBPWQHT

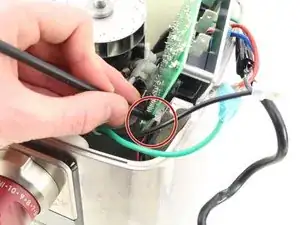

    • Pull or pry off the last connector block, then remove the control board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
