Wolf Gourmet WGBL100S O-ring Replacement

Geschrieben von: Luke Kutz
  • Kommentare: 0
Wolf Gourmet WGBL100S O-ring Replacement

Schwierigkeitsgrad

Very easy

Schritte

6

Zeitaufwand

10 - 15 Minuten

Einleitung

If your blender is leaking or making strange noises, consider replacing the O-ring.

  1. hSZGFcx5R1NooilS

    • Flip over the pitcher to expose the base of the blade assembly.

    • Using the H4.0 Allen key from the 54 bit driver kit, attached to an impact driver, remove the socket head cap screw from the drive coupling.

    • Apply a solvent to remove adhesive if necessary.

  2. lLMPmIKfKXW5WMk3

    • Using a pair of pliers, pull of the drive shaft coupling.

  3. TGvTCENlopfETJj4
    TGvTCENlopfETJj4
    Rw2Pj3wkrBdpVBbM

    • Using a flat head screwdriver and a mallet, bend down the two tabs holding the large nut.

  4. 2Hea1t2EaVO4wpKG

    • Remove the nut using a crescent wrench.

  5. mkwyFswvC3M2fww2

    • Push the blade assembly into the jar.

    • Remove the blades from the device.

    • Be careful not to cut yourself when handling the blades.

  6. PxpF14AMeXQMcqft
    PxpF14AMeXQMcqft
    LHRsilrJaaQJN2Md

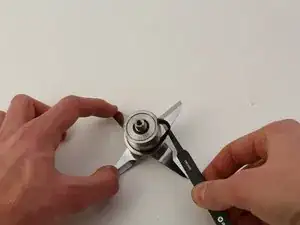

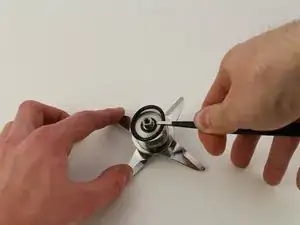

    • Use tweezers to pull off the o-ring.

    • Be careful not to cut yourself while handling the blender blades.

Abschluss

To reassemble your device, follow these instructions in reverse order.
