Wolf Gourmet WGTR102S Heat Dial Replacement

Geschrieben von: Ryan Funchess
  • Kommentare: 0
Wolf Gourmet WGTR102S Heat Dial Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

10 - 15 Minuten

Einleitung

If the toaster is not responding to the heat dial, try replacing the circuit board with this guide.

  1. WjxUUa2puHV2SkLu

    • Using a wedge, pry off the rubber pieces on the bottom of each foot of the toaster.

  2. TVvter1lgkcGRkST

    • Remove the eight 8mm screws on each toaster foot using a Tri-point Y1 screwdriver.

  3. mrTcFbxsea1OdZD4

    • Remove the crumb collector located on the bottom of the toaster.

  4. qgSBOXNkgwPiJakp

    • Remove the three 8mm screws using the Tri-point Y1 screwdriver.

  5. 24LJFpjpfkVgyRCp

    • Remove the two 8mm screws on the bottom of the slide lever using a Tri-point Y1 screwdriver.

    • Once the screws are removed, detach the black plastic cover on the bottom of the slide lever.

  6. nP4BKrrMjKFEhHmS

    • Remove the final 8mm screw in the slide lever.

    • The lever can now pull away from the entire unit.

  7. 62wUiSShXki1KVMn

    • Remove toaster's outer shell by lifting straight up.

    • Slowly remove the outer shell. Disconnect ground wire before fully separating the shell and inner components.

  8. RHF4pxl3IPFxXWvd
    RHF4pxl3IPFxXWvd
    HAXUryJKeMAYK2p1

    • Disconnect the wire cluster that connects the lights and circuit board by pulling apart the two plastic connectors.

    • Remove the outer shell from the device.

  9. wCCqZos1yPt4g3qo

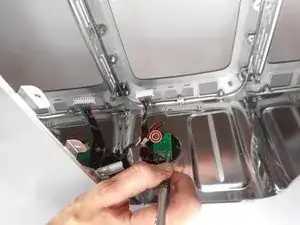

    • Remove the two 4mm screws found on each side of the circuit board using a Tri-point Y1 screwdriver.

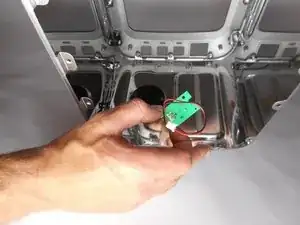

  10. SYJIpyJMLSYDRYiU
    SYJIpyJMLSYDRYiU
    P6xKf1ntvFjyNN5t

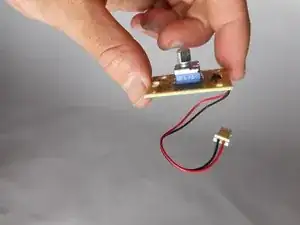

    • Remove the circuit board from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
