Wolfgang Puck Pie Maker Disassembly

Geschrieben von: Jake D. Freedman
  • Kommentare: 0
Wolfgang Puck Pie Maker Disassembly

Schwierigkeitsgrad

Very easy

Schritte

5

Zeitaufwand

15 Minuten

Einleitung

The Wolfgang Puck Pie Maker was released in 2012 by WP Appliances. It has since been discontinued. After frequent use, many users of the device have claimed that there is uneven heating caused by shifts in the heating coil. All the wiring is internally located and requires a #2 Phillips head screwdriver to access. If the device has been used recently, the inside may still be very hot.

  1. EVbWZK6CLH3SJ5xX

    • Open up the pie maker using the two main handles so it's open as shown in the picture.

  2. GtWeaSggSCqGaBUO
    GtWeaSggSCqGaBUO
    ocSxIZrTJQQvadqn

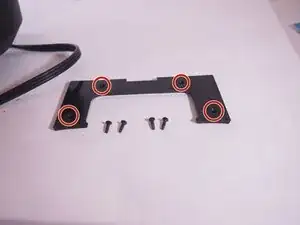

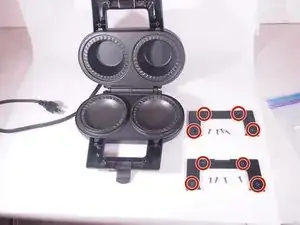

    • Remove the four 12.7 mm screws from each handle using a Phillips #2 screwdriver.

    • Remove the inside handle cover.

  3. BBrcQqOPiFgUHMAK
    BBrcQqOPiFgUHMAK
    CZZA6DSSCcwWd2sL

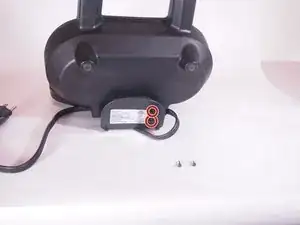

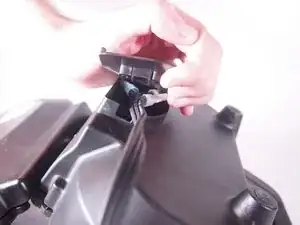

    • Remove the two 12.7 mm screws from the base of the pie maker using a Phillips #2 screwdriver.

    • This will allow for visibility into the wiring in the base.

  4. eZljTeEThT16KFwJ
    eZljTeEThT16KFwJ
    gQO2YLTyoIBAOWvV

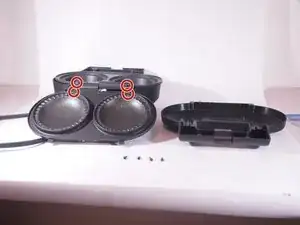

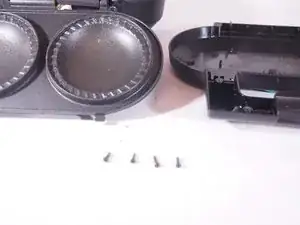

    • Remove the four 15.9 mm screws from the hinges using a Phillips #2 screwdriver.

    • Remove the top cover by pulling it off of the device.

  5. E2vMHKntdHR6eWG1
    E2vMHKntdHR6eWG1
    c23aNedifuESZ2XW

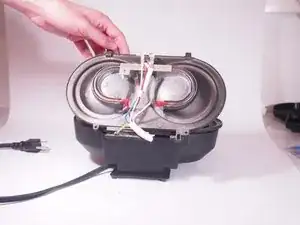

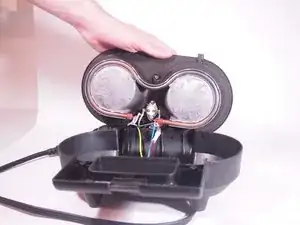

    • You now have access to the wiring underneath the top and bottom of the device.

    • To access the wiring, lift the metal burner part out of the base. The wiring will be visible on the opposite side, attached to the heating coil.

    • The temperature sensor can be accessed by lifting the bottom side of the device as shown.

Abschluss

To reassemble your device, follow these instructions in reverse order.
