WowWee MiP Robot Tire Replacement

Geschrieben von: Moira Keahon
  • Kommentare: 3
WowWee MiP Robot Tire Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

15 - 20 Minuten

Einleitung

This guide is designed to help users remove MiP’s wheels. MiP has two wheels that are connected to its body with screws. If the wheels need replacement or cleaning, follow this guide.

  1. ShHZaoFaVfGIcOpE
    ShHZaoFaVfGIcOpE
    gRck2QqL1BgcAgaL

    • Use a metal spudger to carefully pry off the hubcap without marring the plastic wheel or hubcap.

    • This plastic material is not replaceable. Any damage will be noticeable.

    The hubcap won't come out. It's flat & tight. Even a tiny screwdriver for eyeglass repair can not get under it. Any tricks forgetting it out?

    donna.hester7 -

  2. Vw1biTfGQB2ytDTy
    Vw1biTfGQB2ytDTy
    sYNdOfABTm1aOeEL

    • Remove the 12.0 mm Phillips #2 screw.

    • Hold the wheel in place, or it will rotate as you attempt to remove the screw.

  3. LjtN3AW5hM5dY5xG

    • Pull the wheel off of the square axle.

    • Do not use excessive force while removing the wheel. Pulling too hard on the wheel can damage the axle.

  4. DEsJdLNwc5FGGoyp
    DEsJdLNwc5FGGoyp
    nLdneKU5QFDwDggv

    • Remove the three 7.7 mm Phillips #1 screws.

  5. k5VqOkLouV6V33cC
    k5VqOkLouV6V33cC
    nI25G2YhY6wi51Jl
    PxOJRcJX1LlFp1q1

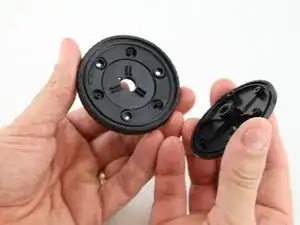

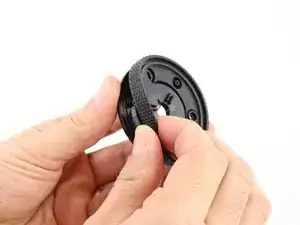

    • Separate the rubber tire from the rim.

    • Push the collar out to separate the plastic layers of the wheel.

    • When reassembling, align the groove and the key of the two wheels' halves together.

    thanks so much

    Clarrie O'HARE -

Abschluss

To reassemble your device, follow these instructions in reverse order.
