X-Rite Colormunki flat cable replacement and reflective patch refurbishing.

Geschrieben von: Feri

Kommentare: 9

X-Rite Colormunki flat cable replacement and reflective patch refurbishing.

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

1 - 2 Stunden

Einleitung

Werkzeuge

Essential Electronics Toolkit

Schritt 1

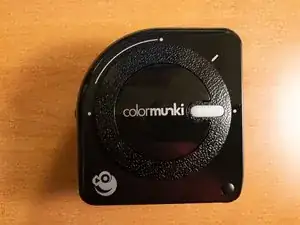

If your Colormunki is behaving eratically while trying to select the calibrating position you may have either one, or both of the following issues. The flat cable within the housing is broken. The light reflecting patches within the housing need refurbishing.

If you have used the instrument extremely often, but own it for relative short time, the likely root cause is that the flex cable is broken, due to the frequent movements. If not, you may omit the flex repair part.

Viceversa, if you have owned it for long time, the reflective patches (unfortunately made from silver) will be covered dark due to hydrogen sulfide gas contents in air. To prevent the latter from occuring, I recommend to store your instrument in an air-tight plastics box.

Ulrich Backes -

Schritt 2

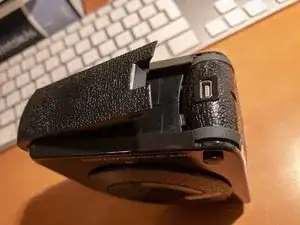

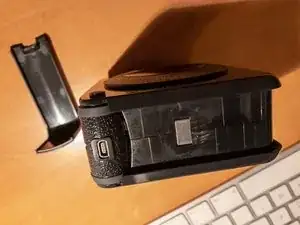

Gently pry off the plastic covers. Start from the place indicated in the picture and go around. There are 3 cover pieces to be removed.

Schritt 3

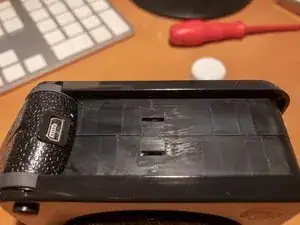

Once covers are removed you will see 4 metal clips connecting the 2 sides of the housing.

Schritt 4

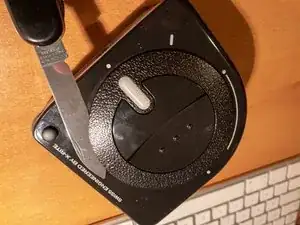

Gently pry off the collar around the rotating piece. Do this on both sides.
Incorrect tool, use a spudger or iFixit opening tool instead of a knife to pry the collar off.

Schritt 5

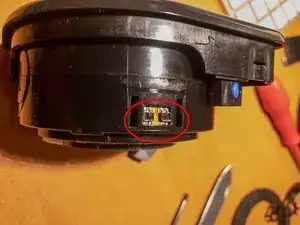

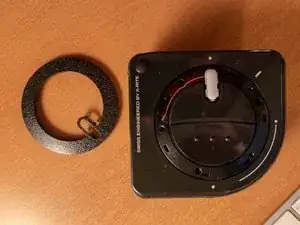

The collar is now removed. The small white plastic covering the LED light tends to fall off, be careful not to lose it.

Schritt 6

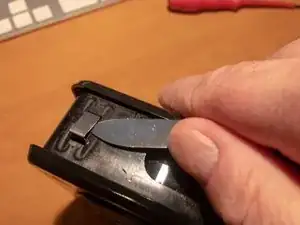

Pry out the 4 clips that hold together the housing.
Incorrect tool, use a spudger or opening tool to pry the 4 clips out.

I used the tweezers to get under the clips.

Grant Zerkee - 09/12/20

Schritt 7

Scrape off the warranty sticker applied on one of the clips.

Schritt 8

Clean the remains of the sticker in order to avoid it staining the interior of the housing once you open it.

Schritt 9

One of the clips is slightly hidden under the flipping part of the Colormunki.

Schritt 10

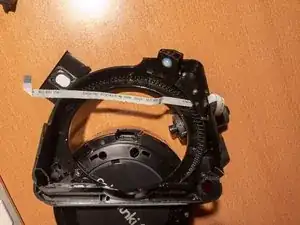

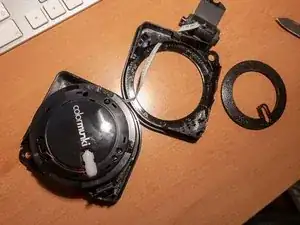

Once all clips are out gently pull apart the 2 pieces of the housing. Be carful to avoid damaging the flat cable.

Schritt 11

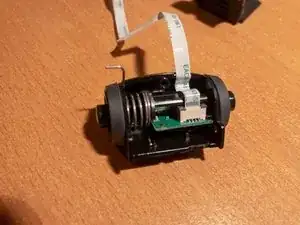

The housing contains the rotating barrel. On the barrel there are 2 (highlighted) reflective optical sensors used for identifying the position of the Colormunki's rotating part. Gently clean the sensors if you feel necessary. Use only a soft cloth, soak it in alcohol if needed.

Schritt 12

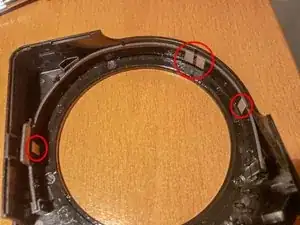

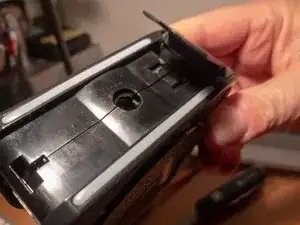

The light emitted by the sensors is bounced by the strips higlighted on the picture. Clean those if yo need to, or refurbish those by gluing on top reflective material (e.g. aluminium foil) while respecting the original shape and position of the strips.

Schritt 13

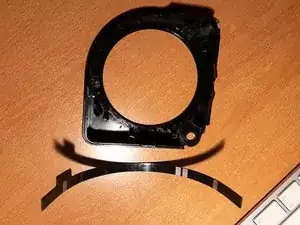

If you need to refurbish the reflecting strips, you can remove the plastic part holding the strips. This will allow you easier access to the strips.

The best way is to immerse the strip into silver cleaning bath (e.g. the one used for silver cutlery) for 10-20secs. Rinse a minute with clear water. Don’t touch the silver with your fingers afterwards. Carefully dry it with soft kitchen paper.

Ulrich Backes -

The surface of one of the strips looked scratched a bit, so I thought gluing aluminium foil on there may not work, as the foil would get scratched off to. So I cut out a small piece of aluminium foil, and put that on the sticky side of some wide transparent adhesive tape. I glued that on top of the strip in the right position, and cut off the excessive pieces of tape to make it fit exactly. So now the aluminium tape is covered with a protective layer and wont scratch off (i hope). Seems to work.

Jos van Riswick -

Schritt 14

Remove the black plastic clip covering the flat cable's connection. Distance the brown coloured retaining mechanism from its base at the entry of the flat cable. The cable will become lose and you can easily remove it.

Deceiphering the step: “Distance the brown colored retaining mechanism” got me into trouble. A better angle and description would have helped. The upper part where the cable enters is secured by a wedge type retaining piece. It’s the two ends you see on either side of the cable going into the base. I thought a flap clamped the cable like a vice and damaged the base trying to flip away the wrong part. Hope this helps anyone else who might be confused. See the photos in step 20 and 21. You can see the same connector better there.

marinonifixed - 04/02/23

Schritt 15

You can read here the type of the flat cable. An equivalent replacement is part number 687708200002 from Wurth Electronics. It is also available via Conrad in Europe.

Unable to find such a part number. Unsure if I’ve even found the correct Wurth electronics as it says it’s automotive related. Sadly, the Munki seems to need the cable as it detects position incorrectly but consistently.

Eric B -

Schritt 16

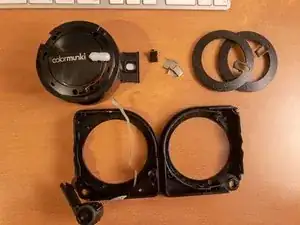

All parts dismantled except the flat cable from the USB port section. Note the plastic item with a white patch. It is the calibration target. Make sure you keep it clean.

Schritt 17

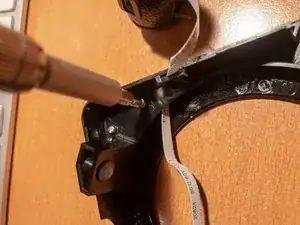

Remove the 2 small screws to release the plastic piece that holds the flat cable attached to the housing.

Schritt 18

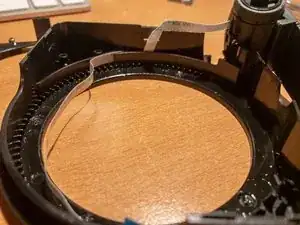

Note the routing of the flat cable.

Schritt 19

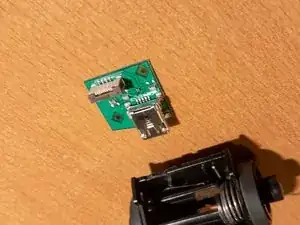

Remove the small screw and gently pry open the small barrel.

Schritt 20

As previously on the rotating barrel, distance gently the cable locking mechanism, i.e. the brown part from the white part. Once distanced you can easily remove the flat cable.

Schritt 21

A close up of the cable retaining mechanism.

Schritt 22

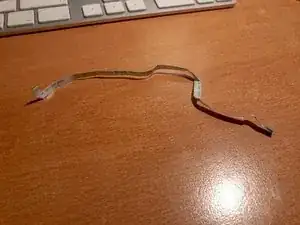

Even if you have to replace it, retain the old cable in order to have a reference of where and how to bend the replacement for getting it back in place as intended.
