Einleitung
This is a simple guide that will open up the car's insides and allow more access to the other parts of the car.
Werkzeuge
-
-

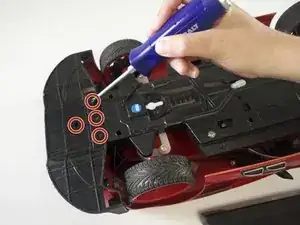

Use the 3 mm Philips #1 screwdriver to remove the three 3 mm screws that connect the front panel with the main underside panel. Also remove the 6 mm front panel screw.
-
Remove the bottom panel by pulling the plastic tabs from either side of the car.
-
-
-

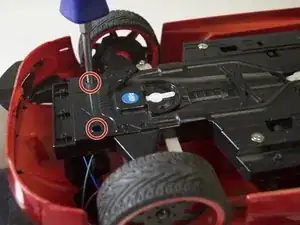

Remove the two 6 mm screws and the two 3 mm screws that connect the back panel to the main underside panel.
-
Remove the two 6 mm screws that connect the rear panel to the body of the car.
-
-
-

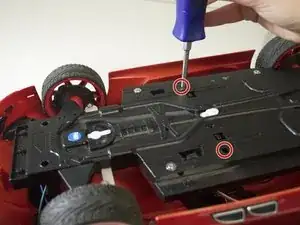

Remove the two front 6 mm screws and the two middle 6 mm screws.
-

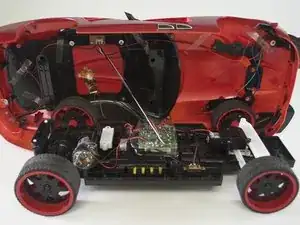

Remove the car shell and place it on the left side of the car.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
