X-street Lamborghini Murcielago LP670-4 SV Front Steering Motor Replacement

Geschrieben von: Trent Peterson
  • Kommentare: 0
X-street Lamborghini Murcielago LP670-4 SV Front Steering Motor Replacement

Schwierigkeitsgrad

Moderate

Schritte

16

Zeitaufwand

30 Minuten

Einleitung

The front steering motor provides power to the steering column which turns the wheels to one side. If the car fails to turn to one side or the other, it is possible the front steering motor needs replacement.

  1. 1olWnWLQxDOTjxIX

    • Unscrew the two 2.5mm Phillips #00 screws from the middle of the car.

    • Unclip the two clips to remove the battery cover.

  2. anojGdmPh3wKSNFw

    • Unplug the battery by pushing on the clip.

  3. tMm2y1YfSUowSNNI

    • Unscrew the two 2.5mm Phillips #00 screws from each side

  4. ZijBsYMO2qRYWdiH

    • Remove the side skirt covers on each side of the car.

  5. UXZPeupxFFIQDXHY
    UXZPeupxFFIQDXHY
    ORfvVKWDypaUORnP

    • Lift up and remove the two side skirts.

  6. JqUHeZBOZQW652o3

    • Unscrew the two 2.5mm Phillips #00 screws from the front skirt of the car.

  7. g6p1ActuMsFJ2Uwc

    • Lift the front part of the underbody and pull it out from the main underbody.

  8. cSOGkPeCr54vXMDV
    cSOGkPeCr54vXMDV
    BYpmSMJuUbEJWXyh

    • Unscrew the remaining seven 9mm Phillips #00 screws from the underbody of the car.

    • The second image shows a closer view of the rear three screws

  9. sGODTSaSIABmQeTY
    sGODTSaSIABmQeTY
    JIAjMSTJngOnaXYo

    • Lift the main underbody from the shell of the car.

    • Lift up the body to expose the wiring and hardware underneath.

  10. bGFVLdp2OrbmbQPp

    • Remove the reflective sticker from the top of the body.

  11. DfAr4I6LNDuH2wwV

    • Unplug the wire connector.

  12. OpYZDQK3y2sWgr1W
    OpYZDQK3y2sWgr1W
    OXvTaPv4W5LyEq1k
    CIuyDTXVUAJIAhXA

    • Unscrew the three 2.5mm Phillips #00 screws from the white steering column.

    • After removing the three screws, the steering column will pop out of position because of the springs underneath. To reassemble, put the springs back together as shown in picture #3.

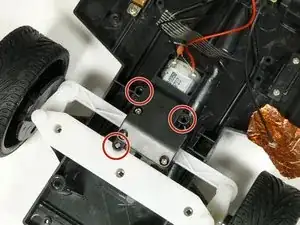

  13. sIGhiHfbn1SSq2cp

    • Remove the three 1.6mm Phillips #000 screws from the black motor casing

  14. e2CQKu2eapovtrwI

    • Remove the front motor and its casing from the chassis of the car.

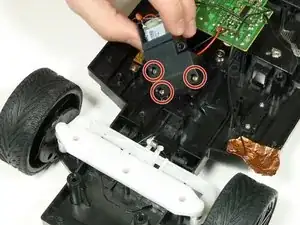

  15. k4WsVUXCYDaRKToj
    k4WsVUXCYDaRKToj
    dhWFpXR5N4ayYSIB

    • Remove the remaining three 1.6 mm Phillips #000 screws from the black motor casing

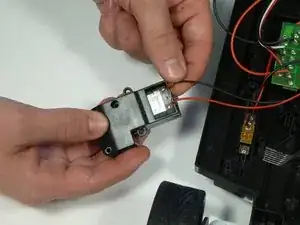

    • The second image shows the screws removed from the casing.

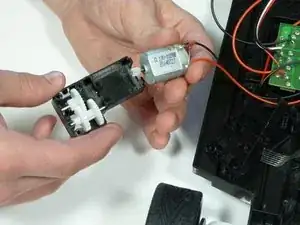

  16. 2AmgknPUZ2lhmddo

    • Pull out the front motor, making sure to keep the gears intact

Abschluss

To reassemble your device, follow these instructions in reverse order.
