X-street Lamborghini Murcielago LP670-4 SV Headlight Replacement

Geschrieben von: Liam Martinez
  • Kommentare: 0
X-street Lamborghini Murcielago LP670-4 SV Headlight Replacement

Schwierigkeitsgrad

Difficult

Schritte

7

Zeitaufwand

25 Minuten

Einleitung

The headlights illuminate while the car is moving forward, and can be useful for seeing the road ahead. A disconnected wire or blown light will make the light not die and will need replacing.

  1. 1olWnWLQxDOTjxIX

    • Unscrew the two 2.5mm Phillips #00 screws from the middle of the car.

    • Unclip the two clips to remove the battery cover.

  2. anojGdmPh3wKSNFw

    • Unplug the battery by pushing on the clip.

  3. P4EOKXAfKdl5IQPT
    P4EOKXAfKdl5IQPT
    IQKilnKQM3hRlJ2i

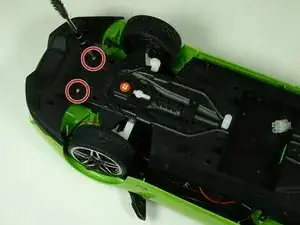

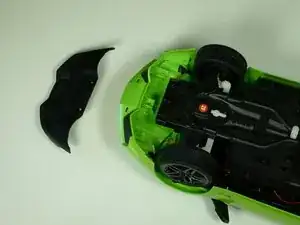

    • Unscrew the two 2.5 mm Phillips #00 screws from the underside of the car and remove the front underskirt.

  4. UOkOlUWr2opXymwe

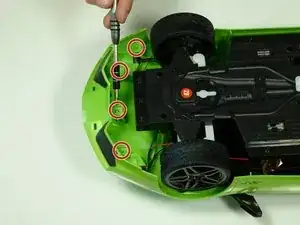

    • Unscrew the four 2.5mm Phillips #00 screws from the front bumper and lift up the front bumper to remove.

  5. x4bCaSJY5ksELEvX

    • Remove the front bumper by sliding it away from the car.

  6. ixUPR2RigSCWJwNk

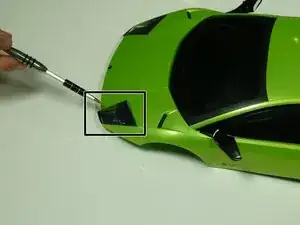

    • Remove the headlight cover.

  7. CRLWULFa5sIKbLck

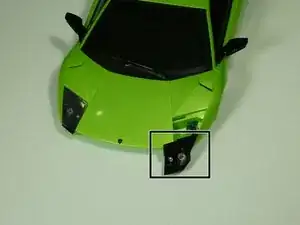

    • Pull out the headlight.

    • Desolder and disconnect the headlight

Abschluss

To reassemble your device, follow these instructions in reverse order.
