X-street Lamborghini Murcielago LP670-4 SV Motherboard Replacement

Geschrieben von: Alex Borsotti
  • Kommentare: 1
X-street Lamborghini Murcielago LP670-4 SV Motherboard Replacement

Schwierigkeitsgrad

Difficult

Schritte

13

Zeitaufwand

30 - 40 Minuten

Einleitung

The motherboard controls all actions of the RC car including steering, acceleration, and communication with the remote. A faulty motherboard will lead to many glitches and unresponsive action in all involved systems.

  1. 1olWnWLQxDOTjxIX

    • Unscrew the two 2.5mm Phillips #00 screws from the middle of the car.

    • Unclip the two clips to remove the battery cover.

  2. anojGdmPh3wKSNFw

    • Unplug the battery by pushing on the clip.

  3. tMm2y1YfSUowSNNI

    • Unscrew the two 2.5mm Phillips #00 screws from each side

  4. ZijBsYMO2qRYWdiH

    • Remove the side skirt covers on each side of the car.

  5. UXZPeupxFFIQDXHY
    UXZPeupxFFIQDXHY
    ORfvVKWDypaUORnP

    • Lift up and remove the two side skirts.

  6. JqUHeZBOZQW652o3

    • Unscrew the two 2.5mm Phillips #00 screws from the front skirt of the car.

  7. g6p1ActuMsFJ2Uwc

    • Lift the front part of the underbody and pull it out from the main underbody.

  8. cSOGkPeCr54vXMDV
    cSOGkPeCr54vXMDV
    BYpmSMJuUbEJWXyh

    • Unscrew the remaining seven 9mm Phillips #00 screws from the underbody of the car.

    • The second image shows a closer view of the rear three screws

  9. sGODTSaSIABmQeTY
    sGODTSaSIABmQeTY
    JIAjMSTJngOnaXYo

    • Lift the main underbody from the shell of the car.

    • Lift up the body to expose the wiring and hardware underneath.

  10. bGFVLdp2OrbmbQPp

    • Remove the reflective sticker from the top of the body.

  11. DfAr4I6LNDuH2wwV

    • Unplug the wire connector.

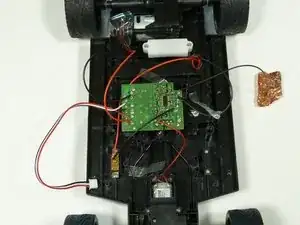

  12. GL2SQ6drdG5NixUJ

    • Desolder all wires connected to the motherboard.

    • In this step, you will have to take great care in keeping track of the wires

    • Our suggestion is to attach tape to each wire, and letter the tape. Letter each tape according to the respective lettering found on the motherboard.

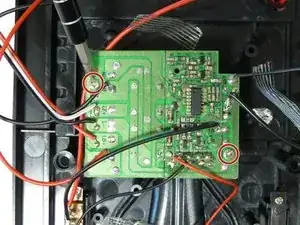

  13. pBcGmFpgQFBBMDuy

    • Unscrew the two 1.6mm Phillips #000 screws connecting the motherboard to the under body of the car.

Abschluss

To reassemble your device, follow these instructions in reverse order.
