X-street Lamborghini Murcielago LP670-4 SV Steering Column Spring Replacement

Geschrieben von: Liam Martinez
  • Kommentare: 0
X-street Lamborghini Murcielago LP670-4 SV Steering Column Spring Replacement

Schwierigkeitsgrad

Moderate

Schritte

15

Zeitaufwand

25 Minuten

Einleitung

The steering column spring is responsible for reverting the wheels to a straight position when the remote is not turning one way or the other. A faulty steering column spring will fail to default to the straight position after turning the wheel.

  1. 1olWnWLQxDOTjxIX

    • Unscrew the two 2.5mm Phillips #00 screws from the middle of the car.

    • Unclip the two clips to remove the battery cover.

  2. anojGdmPh3wKSNFw

    • Unplug the battery by pushing on the clip.

  3. tMm2y1YfSUowSNNI

    • Unscrew the two 2.5mm Phillips #00 screws from each side

  4. ZijBsYMO2qRYWdiH

    • Remove the side skirt covers on each side of the car.

  5. UXZPeupxFFIQDXHY
    UXZPeupxFFIQDXHY
    ORfvVKWDypaUORnP

    • Lift up and remove the two side skirts.

  6. JqUHeZBOZQW652o3

    • Unscrew the two 2.5mm Phillips #00 screws from the front skirt of the car.

  7. g6p1ActuMsFJ2Uwc

    • Lift the front part of the underbody and pull it out from the main underbody.

  8. cSOGkPeCr54vXMDV
    cSOGkPeCr54vXMDV
    BYpmSMJuUbEJWXyh

    • Unscrew the remaining seven 9mm Phillips #00 screws from the underbody of the car.

    • The second image shows a closer view of the rear three screws

  9. sGODTSaSIABmQeTY
    sGODTSaSIABmQeTY
    JIAjMSTJngOnaXYo

    • Lift the main underbody from the shell of the car.

    • Lift up the body to expose the wiring and hardware underneath.

  10. bGFVLdp2OrbmbQPp

    • Remove the reflective sticker from the top of the body.

  11. DfAr4I6LNDuH2wwV

    • Unplug the wire connector.

  12. OpYZDQK3y2sWgr1W
    OpYZDQK3y2sWgr1W
    OXvTaPv4W5LyEq1k
    CIuyDTXVUAJIAhXA

    • Unscrew the three 2.5mm Phillips #00 screws from the white steering column.

    • After removing the three screws, the steering column will pop out of position because of the springs underneath. To reassemble, put the springs back together as shown in picture #3.

  13. QJNrMHNCEA3sKAIB

    • Remove the three 1.6mm Phillips #000 screws from the black motor casing.

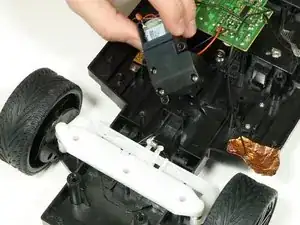

  14. 2BUK3M3dpKMcHrE1

    • Remove the front motor and its casing from the chassis of the car.

  15. 2QGX1PWbuBaJFNAc

    • Carefully remove the steering column spring.

Abschluss

To reassemble your device, follow these instructions in reverse order.
