How to remove both the cosmetic and top covers of the Dell XPS M2010 MXP061. These must be removed to replace the hard drives and other components.
The information and pictures in this guide have been taken from the service manual from this device, listed on the iFixit product page. If you need any additional information on disassembling this device, please consult the service manual.
Werkzeuge
-
-
After turning off the computer and opening the display, remove the keyboard from the computer.
-

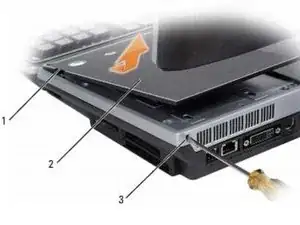

With a flat-head screwdriver, press in the cover-release slot (#3) on the side of the computer.
-
While holding the screwdriver in (so that the button inside the slot is still being held), lift up the cosmetic cover (#2) by the cosmetic-cover notch (#1).
-
-
-

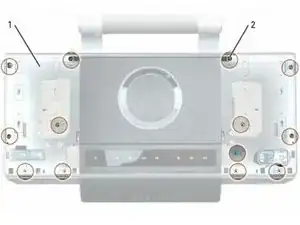

Unscrew the six M2.5 x 5-mm screws on the left side (#1) of the top cover, then unscrew the seven M2.5 x 5-mm screws on the right side (#2) of the top cover.
-
-
-

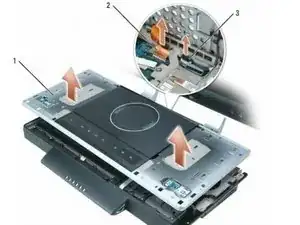

While holding the top cover up, unplug the two cable connectors by pulling up on the pull loop or connector.
-
To reassemble your device, follow these instructions in reverse order.
