XQ-673H Power Cord Replacement

Geschrieben von: Sean Perry
  • Kommentare: 0
XQ-673H Power Cord Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 - 20 Minuten

Einleitung

This guide will help the owner of a Kitchen Gourmet XQ-673H replace the power cord.

  1. gjThlETohUtbLu6y

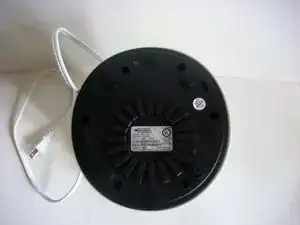

    • Turn the Kitchen Gourmet upside down.

    • Make sure the device is unplugged before continuing.

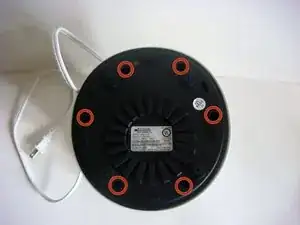

  2. cygymShOGJGFiYmO
    cygymShOGJGFiYmO
    LAAEZImHQABaAwN1
    QkQvVY5s155UXhLM

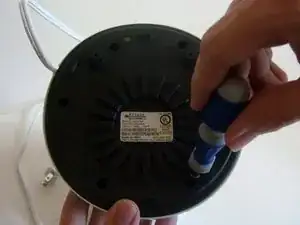

    • Using a phillips #1 screwdriver, remove the six 10mm screws found on the bottom of the device.

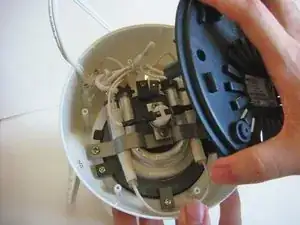

    • Remove the bottom cover.

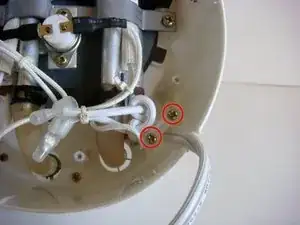

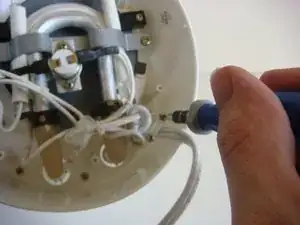

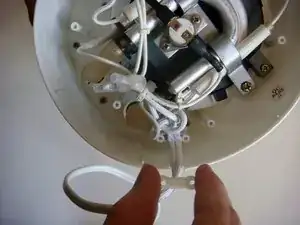

  3. RuOyOwcaH4uEcRaV
    RuOyOwcaH4uEcRaV
    wWmOXNdlYg3BNnRH
    T3UabJEHGwdaDBdJ

    • Using a Phillips #1 screwdriver, unscrew the 11mm screws.

    • Remove the plastic bar that is holding the Power Cord down.

  4. I5klZRFDDtPDV6Zk
    I5klZRFDDtPDV6Zk
    kuqLTWLLsl3V4fV5

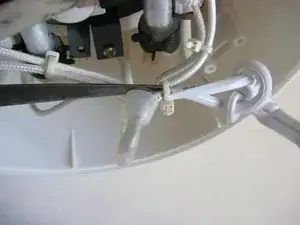

    • Using scissors, carefully cut the zip tie.

    • Careful not to cut the Power Cord.

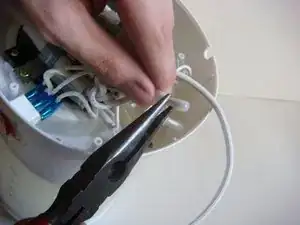

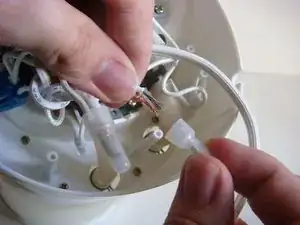

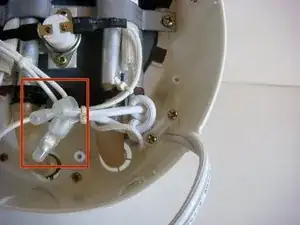

  5. M61P2cRIOl3CkPyX
    M61P2cRIOl3CkPyX
    pbrhASRRvuWXBiID
    IcLgr2QoAs5AyxWm

    • Using small needle nose pliers, gently squeeze the side so it allows the metal clamp to open up.

    • Gently pull off the plastic cover.

    • Repeat this step with the other plastic cover.

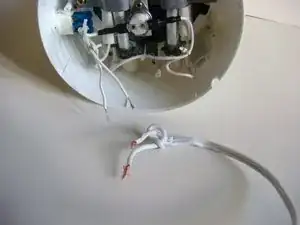

  6. V4rdELLPNjGLQuGk
    V4rdELLPNjGLQuGk
    UWlaiNLOUiMksOKI

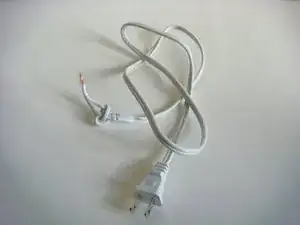

    • Remove the Power Cord from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
